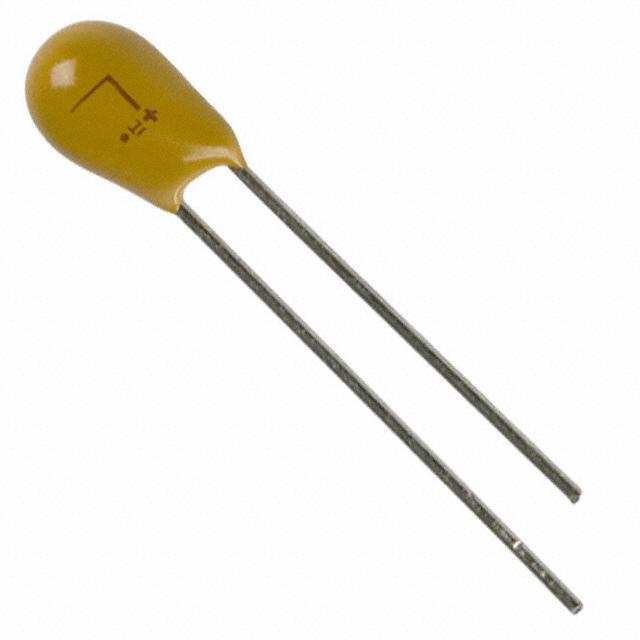

TAP 系列 10 uF ±20 % 25 V 径向 固体树脂 浸胶 钽电容
This solid tantalum capacitor from will retain its properties through a variety of operating conditions. Users like its straight wire form. It can withstand a voltage of 25 VDC. This solid capacitor has a maximum operating temperature of 125 °C. Its leakage current is 2 μA. This part has a pitch of 2.5 mm. The TAP106M025SCS solid capacitor has a radial termination style. Its capacitance value is 10uF. This product is 9Max mm tall with a diameter of 5.5Max mm. It has a tolerance of 20%.
额定电压DC 25 V
工作电压 25 VDC
电容 10 µF
等效串联电阻ESR 2.5 Ω
容差 ±20 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 25 V
安装方式 Through Hole
引脚数 2
封装 Radial
引脚间距 2.5 mm
长度 9 mm
高度 9 mm
封装 Radial
引脚间距 2.5 mm
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TAP106M025SCS AVX 艾维克斯 | 当前型号 | 当前型号 |
TAP106M025DTS 艾维克斯 | 完全替代 | TAP106M025SCS和TAP106M025DTS的区别 |
TAP106M025DTW 艾维克斯 | 类似代替 | TAP106M025SCS和TAP106M025DTW的区别 |
TAP106M025GSB 艾维克斯 | 功能相似 | TAP106M025SCS和TAP106M025GSB的区别 |
