3引脚微控制器复位监视器 3-Pin Microcontroller Reset Monitors
Keep your circuit secure if your main processor goes out by using this microprocessor supervisory circuit from Technology. This device has a maximum power dissipation of 174 mW. Its maximum power dissipation is 174 mW. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This device has a minimum operating supply voltage of 1 V and a maximum of 5.5 V. This part has an operating temperature range of -40 °C to 125 °C. It has a typical reset threshold voltage of 4 V, with a minimum of 3.93 V and a maximum of 4.06 V.
电源电压DC 1.00V min
输出电流 20 mA
耗散功率 174 mW
静态电流 12.0 µA
阈值电压 2.5 V, 3 V, 3.3 V, 5 V
复位电压Min 3.93 V
复位电压Max 4.06 V
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 174 mW
电源电压Max 5.5 V
电源电压Min 1 V
安装方式 Surface Mount

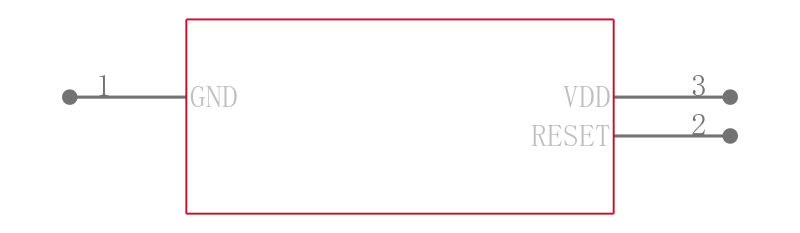

引脚数 3
封装 SC-70-3
长度 2 mm
宽度 1.35 mm
高度 1 mm
封装 SC-70-3
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
