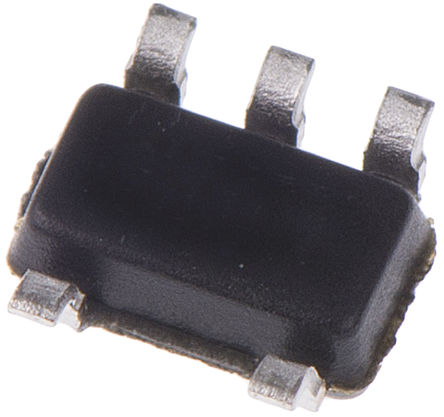

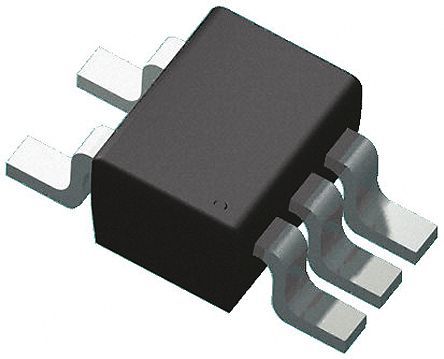

TEXAS INSTRUMENTS TLV70036DDCT 固定电压稳压器, LDO, 2V至5.5V, 175mV压差, 3.6V输出, 200mA输出, SOT-23-5
LDO(低压降)线性稳压器,200mA,Texas Instruments
立创商城:
TLV70036DDCT
德州仪器TI:
200-mA, high-PSRR, low-IQ, low-dropout voltage regulator with enable
得捷:
IC REG LINEAR 3.6V 200MA SOT23-5
欧时:
Texas Instruments TLV70036DDCT LDO 稳压器, 3.6 V输出, 200mA最大输出, ±2%精确度, 2 → 5.5 V输入
贸泽:
LDO Voltage Regulators 200m, Lw IQ, Lw-Drp out Rgultr fr Prtbls
e络盟:
TEXAS INSTRUMENTS TLV70036DDCT 固定电压稳压器, LDO, 2V至5.5V, 175mV压差, 3.6V输出, 200mA输出, SOT-23-5
艾睿:
Stable voltages are always needed for sensitive systems implement this LDO TLV70036DDCT linear regulator from Texas Instruments. This device has a maximum power dissipation of 500 mW. It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 0.2 A. Using the part will provide the power your application needs by requiring a voltage only of 2 V and not exceeding a voltage of 5.5 V. With a fixed output that has a voltage of 3.6 V, this is power management at its best. Users like the load regulation of 1mVTyp and line regulation of 1mVTyp. Its maximum power dissipation is 500 mW. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C.
安富利:
LDO Regulator Pos 3.6V 0.2A 5-Pin SOT T/R
Chip1Stop:
LDO Regulator Pos 3.6V 0.2A 5-Pin TSOT-23 T/R
Verical:
LDO Regulator Pos 3.6V 0.2A 5-Pin TSOT-23 T/R
Newark:
# TEXAS INSTRUMENTS TLV70036DDCT Fixed LDO Voltage Regulator, 2V to 5.5V, 175mV Dropout, 3.6Vout, 200mAout, SOT-23-5
DeviceMart:
IC REG LDO 3.6V .2A SOT23-5
额定功率 500 mW
输出接口数 1
输出电压 3.6 V
输出电流 200 mA
针脚数 5
耗散功率 500 mW
静态电流 31 µA
输出电容类型 Ceramic
跌落电压 175 mV
调节输出数 1
输入电压Max 5.5 V
输入电压Min 2 V
输出电压Min 3.6 V
输出电流Max 200 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 500 mW
精度 ±2 %
输入电压 ≤5.5 V
安装方式 Surface Mount
引脚数 5
封装 TSOT-23-5
长度 3.05 mm
宽度 1.75 mm
高度 1 mm
封装 TSOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TLV70036DDCT TI 德州仪器 | 当前型号 | 当前型号 |
TLV70036DDCR 德州仪器 | 类似代替 | TLV70036DDCT和TLV70036DDCR的区别 |
