TLV70030QDCKRQ1

200 - mA的低智商的低压降稳压器用于便携式设备 200-mA LOW-IQ LOW-DROPOUT REGULATOR FOR PORTABLE DEVICES

The TLV700xx-Q1 family of low-dropout LDO linear regulators are low-quiescent-current devices with excellent line- and load-transient performance. These LDOs are designed for power-sensitive applications. A precision band-gap and error amplifier provides overall 2% accuracy. Low output noise, very high power-supply rejection ratio PSRR, and low dropout voltage make this series of devices ideal for most battery-operated handheld equipment or for working as a second-stage power supply for connecting automotive battery applications. All device versions have thermal shutdown and current limit for safety.

Furthermore, these devices are stable with an effective output capacitance of only 0.1 µF. This feature enables the use of cost-effective capacitors that have higher bias voltages and temperature derating. The devices regulate to specified accuracy with no output load.

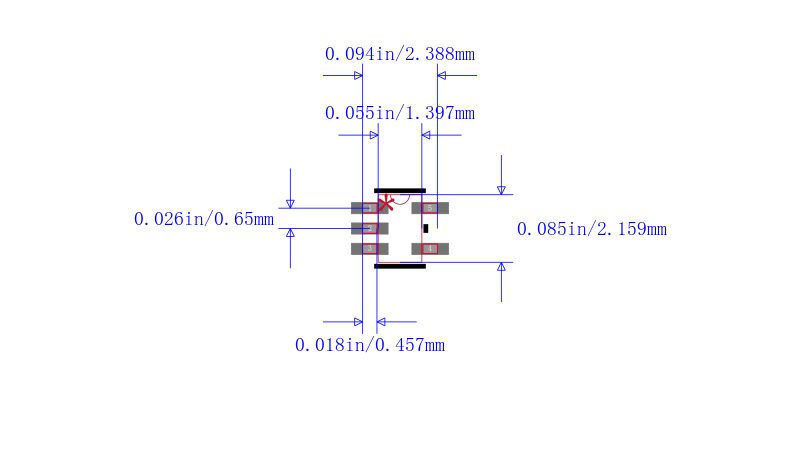

The TLV700xx-Q1 LDOs are available in the SOT-5 DDC and the SC70-5 DCK packages.
