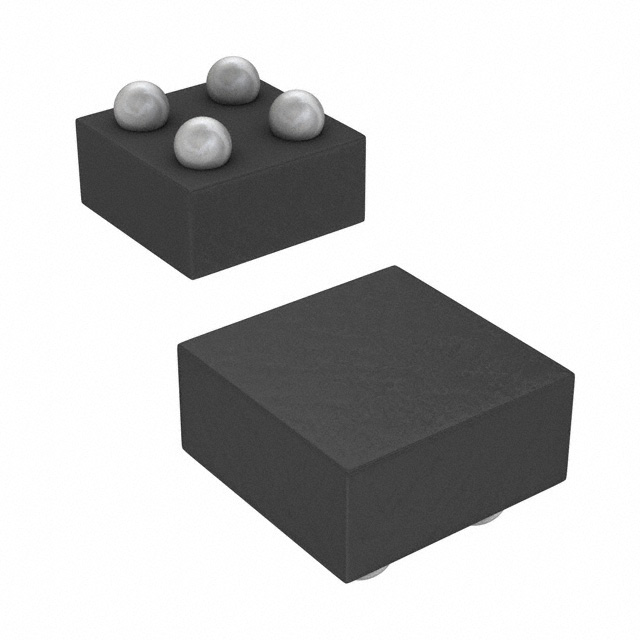

TEXAS INSTRUMENTS TPS22908YZTR 电源负载开关, 高压侧, 高电平有效, 1路输出, 3.6V, 1A, DSBGA-4
Dealing with high voltages and currents? Protect your circuit with the power switch, developed by Texas Instruments. This charge controller has single output. It features 0.112 Ohm switch on resistance. This charge controller has an input voltage of 1 to 3.6 V. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This charge controller has an operating temperature range of -40 °C to 85 °C.
输出接口数 1
输入电压DC 3.60 V
输出电压 0V ~ 3.6V
输出电流 1 A
通道数 1
针脚数 4
静态电流 190 nA
输出电流Max 1 A
输出电流Min 1 A
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 3.6 V
安装方式 Surface Mount
引脚数 4
封装 UFBGA-4
高度 0.48 mm
封装 UFBGA-4
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
香港进出口证 NLR
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TPS22908YZTR TI 德州仪器 | 当前型号 | 当前型号 |
TPS22908YZTT 德州仪器 | 完全替代 | TPS22908YZTR和TPS22908YZTT的区别 |
