50毫安100 mA和150毫安CMOS LDO,具有关断和错误输出 50 mA, 100 mA and 150 mA CMOS LDOs with Shutdown and ERROR Output
General Description
The TC1054, TC1055 and TC1186 are high accuracy typically ±0.5% CMOS upgrades for older bipolar low dropout regulators. Designed specifically for battery-operated systems, the devices’ CMOS construction minimizes ground current, extending battery life. Total supply current is typically 50 µA at full load 20 to 60 times lower than in bipolar regulators.
Features
• Low Ground Current for Longer Battery Life
• Low Dropout Voltage
• Choice of 50 mA TC1054, 100 mA TC1055 and 150 mA TC1186 Output
• High Output Voltage Accuracy
• Standard or Custom Output Voltages:
- 1.8V, 2.5V, 2.6V, 2.7V, 2.8V, 2.85V, 3.0V, 3.3V, 3.6V, 4.0V, 5.0V
• Power-Saving Shutdown Mode
• ERROR Output Can Be Used as a Low Battery
Detector or Microcontroller Reset Generator
• Overcurrent and Overtemperature Protection

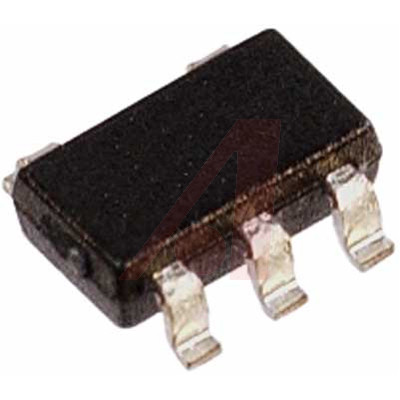

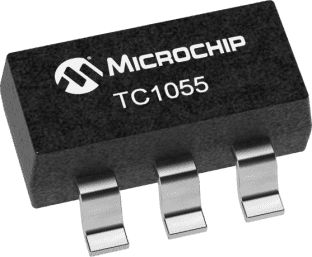

• 5-Pin SOT-23 Package
• Pin Compatible Upgrades for Bipolar Regulators
Applications
• Battery Operated Systems
• Portable Computers
• Medical Instruments
• Instrumentation
• Cellular/GSM/PHS Phones
• Linear Post-Regulators for SMPS
• Pagers
输出接口数 1
输入电压DC 2.70V min
输出电压 5 V
输出电流 100 mA
供电电流 80 µA
静态电流 50.0 µA
输出电容类型 Tantalum
跌落电压 0.18V @100mA
输入电压Max 6 V
输入电压Min 2.7 V
输出电压Min 5 V
输出电流Max 0.1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±0.5 %
输入电压 6V ~ 2.7V
安装方式 Surface Mount
引脚数 5
封装 SOT-23-5
封装 SOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TC1055-5.0VCT713 Microchip 微芯 | 当前型号 | 当前型号 |
TC1186-5.0VCT713 微芯 | 完全替代 | TC1055-5.0VCT713和TC1186-5.0VCT713的区别 |
TC2054-5.0VCTTR 微芯 | 完全替代 | TC1055-5.0VCT713和TC2054-5.0VCTTR的区别 |
TC2186-5.0VCTTR 微芯 | 完全替代 | TC1055-5.0VCT713和TC2186-5.0VCTTR的区别 |
