TEXAS INSTRUMENTS TLV70212DBVT 固定电压稳压器, LDO, 2V至5.5V, 220mV压差, 1.2V输出, 300mA输出, SOT-23-5
LDO(低压降)线性稳压器,300mA、350mA,Texas Instruments
得捷:
IC REG LINEAR 1.2V 300MA SOT23-5
立创商城:
TLV70212DBVT
德州仪器TI:
300-mA, high-PSRR, low-IQ, low-dropout voltage regulator with enable
欧时:
### LDO(低压降)线性稳压器,300mA、350mA,Texas Instruments### LDO(低压降)线性稳压器,Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
e络盟:
固定电压稳压器, LDO, 2V至5.5V, 220mV压差, 1.2V输出, 300mA输出, SOT-23-5
艾睿:
Stable power is ideal for better processing this LDO TLV70212DBVT linear regulator developed by Texas Instruments will help do so. This device has a maximum power dissipation of 500 mW. It has an overall accuracy of ±0.5 %. This voltage regulation device&s;s single output can produce a current up to 0.3 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 2 V that does not exceed 5.5 V. With a fixed output that has a voltage of 1.2 V, this is power management at its best. By operating at a load regulation of 1mVTyp and line regulation of 1mVTyp you can provide a constant voltage at your output. Its maximum power dissipation is 500 mW. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive.
安富利:
LDO Regulator Pos 1.2V 0.3A 5-Pin SOT-23 T/R
Chip1Stop:
LDO Regulator Pos 1.2V 0.3A 5-Pin SOT-23 T/R
Verical:
LDO Regulator Pos 1.2V 0.3A 5-Pin SOT-23 T/R
Newark:
# TEXAS INSTRUMENTS TLV70212DBVT Fixed LDO Voltage Regulator, 2V to 5.5V, 220mV Dropout, 1.2Vout, 300mAout, SOT-23-5
额定功率 0.5 W
输出接口数 1
输出电压 1.2 V
输出电流 300 mA
针脚数 5
耗散功率 500 W
静态电流 35 µA
输出电容类型 Ceramic
跌落电压 220 mV
调节输出数 1
输入电压Max 5.5 V
输入电压Min 2 V
输出电压Min 1.2 V
输出电流Max 300 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 500 mW
精度 ±0.5 %
输入电压 2V ~ 5.5V
安装方式 Surface Mount
引脚数 5

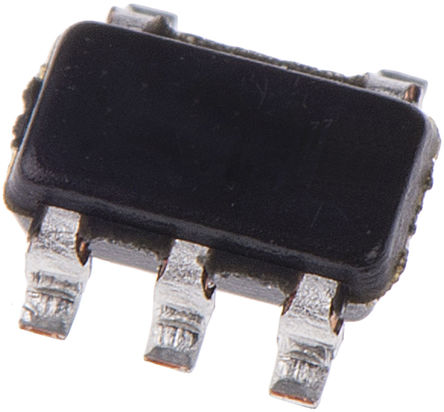

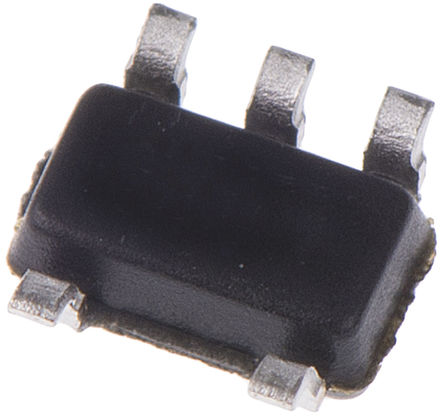

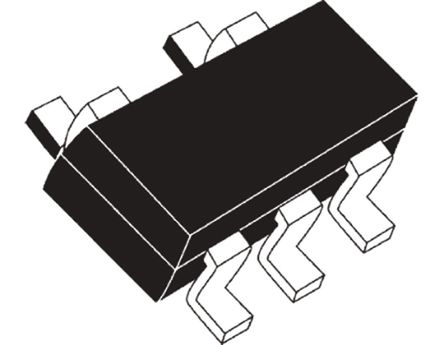

封装 SOT-23-5
长度 3.05 mm
宽度 1.75 mm
高度 1.3 mm
封装 SOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TLV70212DBVT TI 德州仪器 | 当前型号 | 当前型号 |
TLV70212DBVR 德州仪器 | 类似代替 | TLV70212DBVT和TLV70212DBVR的区别 |
