可调式精密并联稳压器 ADJUSTABLE PRECISION SHUNT REGULATORS
The TL432x-Q1 devices are three-terminal adjustable shunt regulators with specified thermal stability over the automotive temperature range. The output voltage can be set to any value between Vref approximately 2.5 V and 36 V with two external resistors. These devices have a typical output impedance of 0.2 Ω. Active output circuitry provides a very sharp turn-on characteristic, making these devices excellent replacements for Zener diodes in many applications such as onboard regulation, adjustable power supplies, and switching power supplies.
The TL432x-Q1 devices are offered in two grades with initial tolerances at 25°C of 0.5% and 1%, for the B and A grade, respectively. In addition, low output drift vs temperature ensures good stability over the entire temperature range.
The devices are characterized for operation from –40°C to 125°C.
容差 ±0.5 %
输出电压 2.495V ~ 36V
输出电流 100 mA
通道数 1
输入电压Max 37 V
输出电压Max 36 V
输出电压Min 2.495 V
输出电流Max 100 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 2.495V ~ 36V
安装方式 Surface Mount
引脚数 3

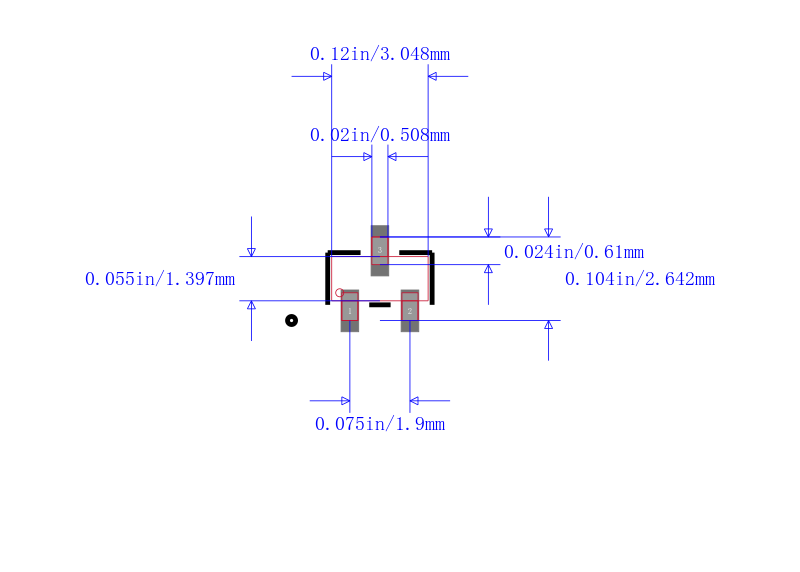

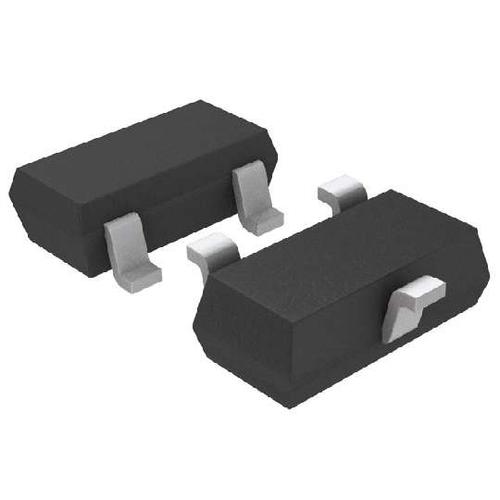

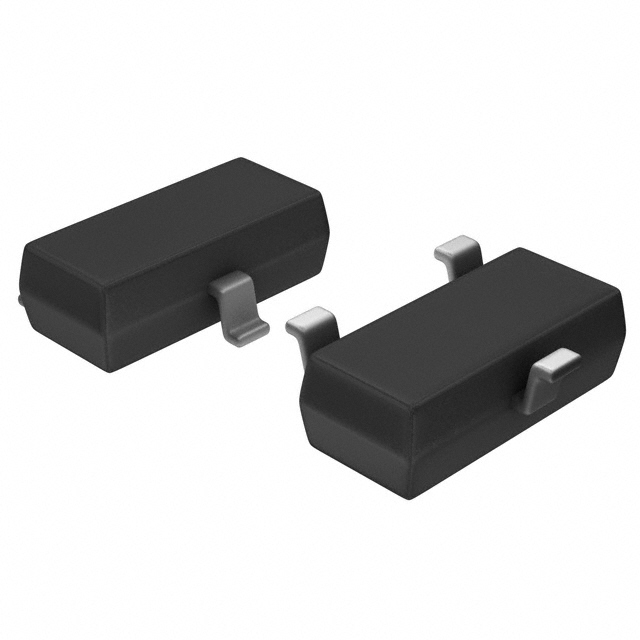

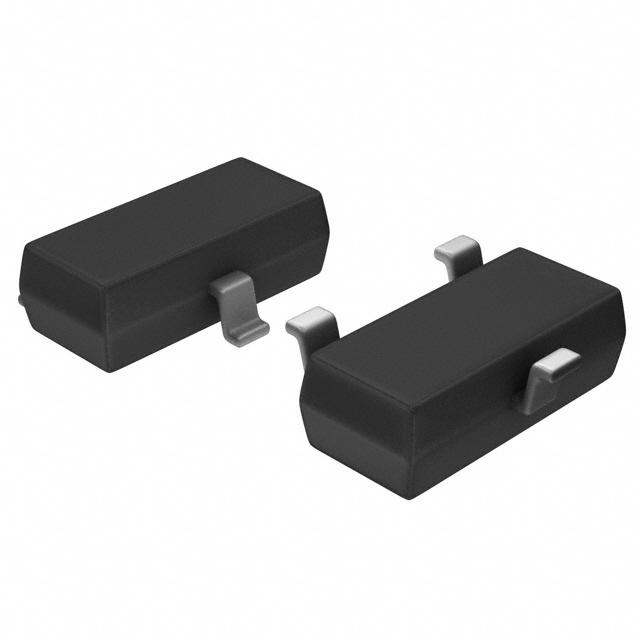

封装 SOT-23-3
长度 2.92 mm
宽度 1.3 mm
高度 1 mm
封装 SOT-23-3
工作温度 -40℃ ~ 125℃
温度系数 ±92 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TL432BQDBZRQ1 TI 德州仪器 | 当前型号 | 当前型号 |
TL432BQDBZR 德州仪器 | 类似代替 | TL432BQDBZRQ1和TL432BQDBZR的区别 |
TL431BQDBZR 德州仪器 | 类似代替 | TL432BQDBZRQ1和TL431BQDBZR的区别 |
TL431AQDBZR 德州仪器 | 类似代替 | TL432BQDBZRQ1和TL431AQDBZR的区别 |
