LDO(低压降)线性电压调节器,1A,TLV11 系列,Texas Instruments### LDO(低压降)线性电压调节器,Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
LDO(低压降)线性稳压器,1A,TLV11 系列,Texas Instruments
### LDO(低压降)线性稳压器,Texas Instruments
低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
得捷:

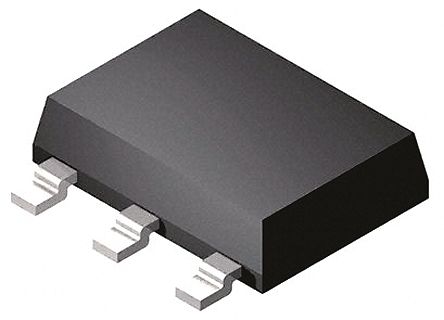

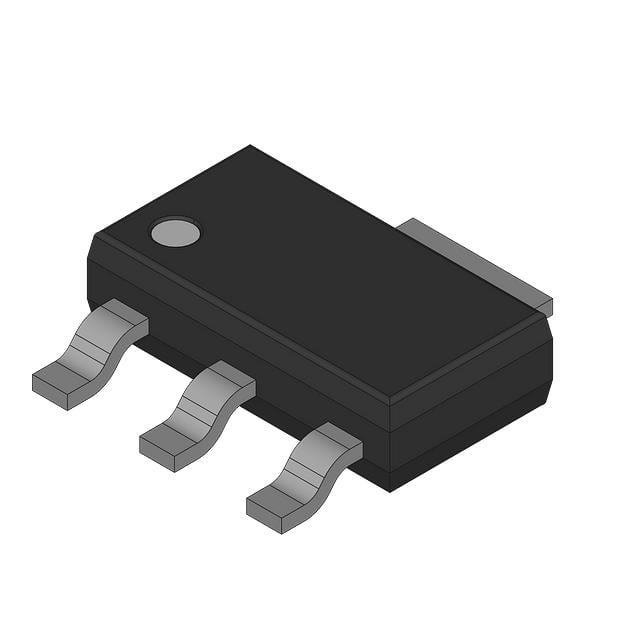

IC REG LINEAR 1.8V 1A SOT223-4
立创商城:
TLV1117LV18DCYT
德州仪器TI:
1-A, low-dropout voltage regulator
欧时:
### LDO(低压降)线性稳压器,1A,TLV11 系列,Texas Instruments### LDO(低压降)线性稳压器,Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
艾睿:
Maintain a steady voltage level with this LDO TLV1117LV18DCYT linear regulator from Texas Instruments. It has an overall accuracy of ±2 %. This device has a maximum power dissipation of 1590 mW. Its typical dropout voltage at current is 0.115@200mA|0.285@500mA|0.455@800mA|0.57@1A V. This voltage regulation device&s;s single output can produce a current up to 1 A. With a small input voltage of 2 V and a max of 5.5 V, this will supply sufficient power to your circuit. With a fixed output that has a voltage of 1.8 V, this is power management at its best. Maintain a constant voltage level with a load regulation of 35mV and line regulation of 5mV. Its maximum power dissipation is 1590 mW. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. The maximum dropout voltage is 0.8@1A V. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive.
安富利:
LDO Regulator Pos 1.8V 1A 4-Pin3+Tab SOT-223 T/R
Chip1Stop:
LDO Regulator Pos 1.8V 1A 4-Pin3+Tab SOT-223 T/R
TME:
Voltage regulator; LDO, fixed; 1.8V; 1A; SOT223; SMD; Uoper:2÷5.5V
Verical:
LDO Regulator Pos 1.8V 1A 4-Pin3+Tab SOT-223 T/R
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 1.8V 1A SOT-223-4
额定功率 1.59 W
输出接口数 1
输出电压 1.8 V
输出电流 1 A
供电电流 100 µA
耗散功率 1.59 W
静态电流 100 µA
输出电容类型 Ceramic
跌落电压 0.57V @1A
调节输出数 1
输入电压Max 5.5 V
输入电压Min 2 V
输出电压Min 1.8 V
输出电流Max 1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 1590 mW
精度 ±2 %
输入电压 ≤5.5 V
安装方式 Surface Mount
引脚数 4
封装 TO-261-4
长度 6.7 mm
宽度 3.7 mm
高度 1.7 mm
封装 TO-261-4
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TLV1117LV18DCYT TI 德州仪器 | 当前型号 | 当前型号 |
TLV1117LV18DCYR 德州仪器 | 类似代替 | TLV1117LV18DCYT和TLV1117LV18DCYR的区别 |
