TC1017-3.0VLTTR

150 MA 微型 CMOS LDO 稳压器 带关断 SC70

General Description

The TC1017 is a high-accuracy typically ±0.5% CMOS upgrade for bipolar low dropout regulators. It is offered in a SC-70 or SOT-23 package. The SC-70 package represents a 50% reduced footprint versus the popular SOT-23 package.

Developed specifically for battery-powered systems, the TC1017’s CMOS construction consumes only 53 µA typical supply current over the entire 150 mA operating load range. This can be as much as 60 times less than the quiescent operating current consumed by bipolar LDOs.

Features

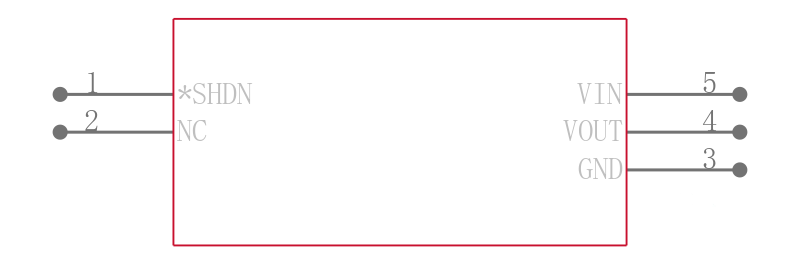

• Space-saving 5-Pin SC-70 and SOT-23 Packages

• Extremely Low Operating Current for Longer Battery Life: 53 µA typ.

• Very Low Dropout Voltage

• Rated 150 mA Output Current

• Requires Only 1 µF Ceramic Output Capacitance

• High Output Voltage Accuracy: ±0.5% typ.

• 10 µsec typ. Wake-Up Time from SHDN

• Power-Saving Shutdown Mode: 0.05 µA typ.

• Overcurrent and Overtemperature Protection

• Pin Compatible Upgrade for Bipolar Regulators

Applications

• Cellular/GSM/PHS Phones

• Battery Operated Systems

• Portable Computers

• Medical Instruments

• Electronic Games

• Pagers
