可调，固定低压差稳压器 ADJUSTABLE AND FIXED LOW-DROPOUT VOLTAGE REGULATOR
description
The TLV1117 is a positive low-dropout voltage regulator, designed to provide up to 800 mA of output current. The device is available in 1.5 V, 1.8 V, 2.5 V, 3.3 V, 5 V, and adjustable output voltage options. All internal circuitry is designed to operate down to 1-V input-to-output differential. Dropout voltage is specified at a maximum of 1.3 V at 800 mA, decreasing at lower load currents. 1.5 V, 1.8 V, 2.5 V, 3.3 V, 5 V, and Adjustable
Output Voltage Options
Output Current of 800 mA
Operates Down to 1.1-V Dropout
Specified Dropout Voltage at Multiple Current Levels
0.2% Line Regulation Maximum
0.4% Load Regulation Maximum
输出接口数 1
输入电压DC 15.0V max
输出电压 1.5 V
输出电流 800 mA
供电电流 10 mA
静态电流 10 mA
输出电容类型 Ceramic
跌落电压 1.2V @800mA
调节输出数 1
输入电压Max 15 V
输入电压Min 2.9 V
输出电压Min 1.5 V
输出电流Max 0.8 A
工作温度Max 125 ℃
工作温度Min 0 ℃
输入电压 2.9V ~ 15V
安装方式 Surface Mount
引脚数 4

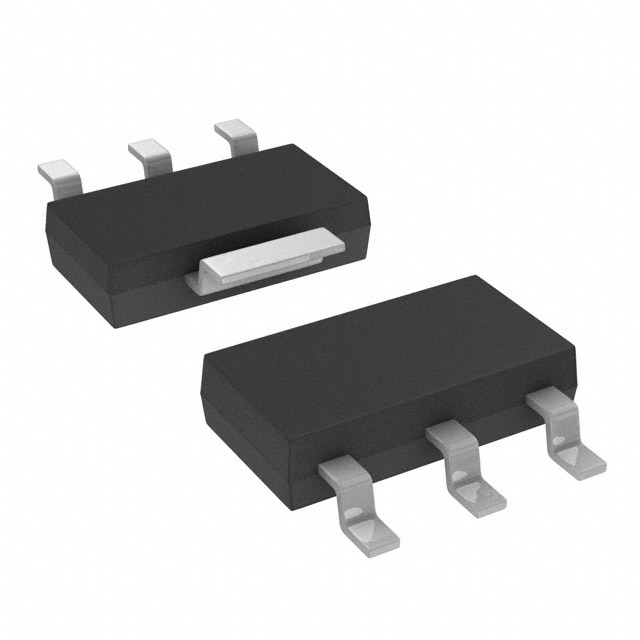

封装 SOT-223-4
长度 6.5 mm
宽度 3.5 mm
高度 1.6 mm
封装 SOT-223-4
工作温度 0℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TLV1117-15CDCYR TI 德州仪器 | 当前型号 | 当前型号 |
TLV1117-15CDCY 德州仪器 | 类似代替 | TLV1117-15CDCYR和TLV1117-15CDCY的区别 |
TLV1117-15CDCYRG3 德州仪器 | 类似代替 | TLV1117-15CDCYR和TLV1117-15CDCYRG3的区别 |
LMS8117AMP-1.8/NOPB 德州仪器 | 功能相似 | TLV1117-15CDCYR和LMS8117AMP-1.8/NOPB的区别 |
