TFT20015 NA005

ALPHA WIRE  TFT20015 NA005  套管, 薄壁, 30.5 m, 100 ft, 柔性, 1.65 mm, PTFE 聚四氟乙烯, 本色

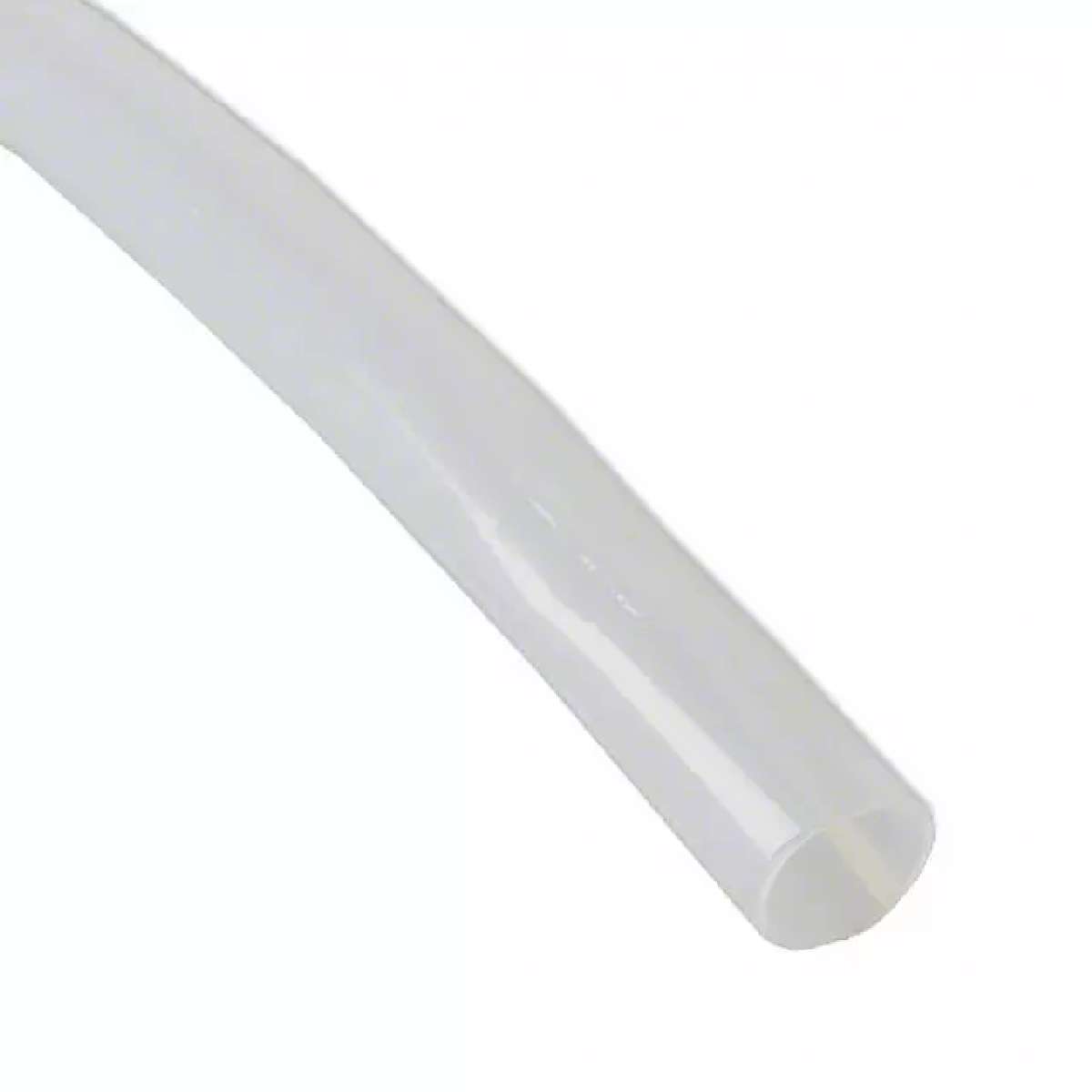

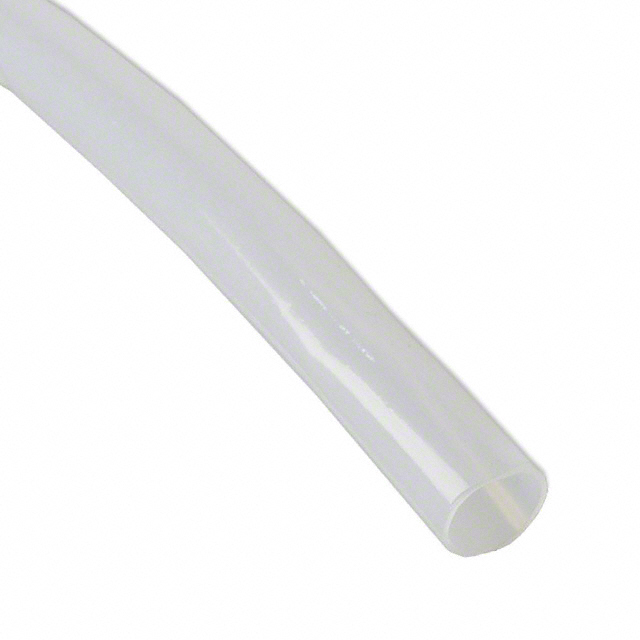

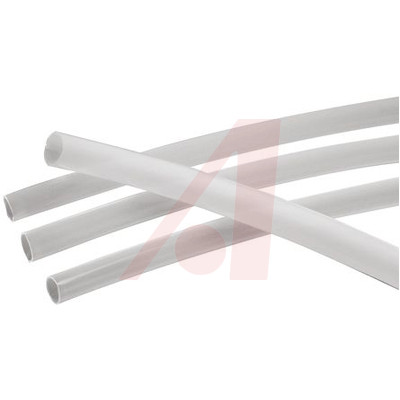

The is a Non Shrinkable Flexible Thin-Wall PTFE Tubing. The tubing offers protection from flammability and chemicals. The Tubing has the size for your wire and cable routing needs. To improve the reliability of cable harnesses, PTFE tubing provides a heat and abrasion resistant wire insulator under the most adverse conditions. With an unmatched temperature range, exceptional abrasion resistance and excellent dielectric properties, it maintains flexibility over its entire temperature range.

.

2 x 10¹⁸Rcm Minimum volume resistivity

.

3000psi Minimum tensile strength

.

0.012" Nominal wall thickness

.

2.18 Maximum specific gravity

.

1400V/mil Minimum dielectric strength

.

-75 to 260°C Temperature range
