TL494IDG4

TEXAS INSTRUMENTS  TL494IDG4  脉冲宽度调制控制电路, 40V-7V电源, 300 kHz, 40V/200mA输出, SOIC-16

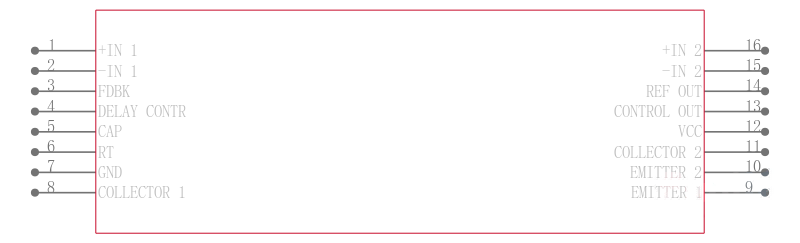

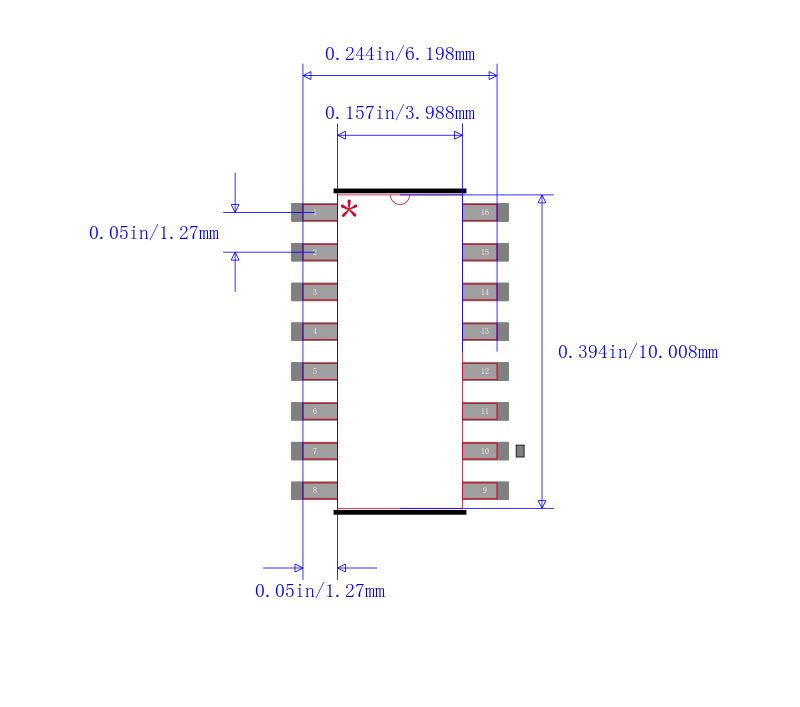

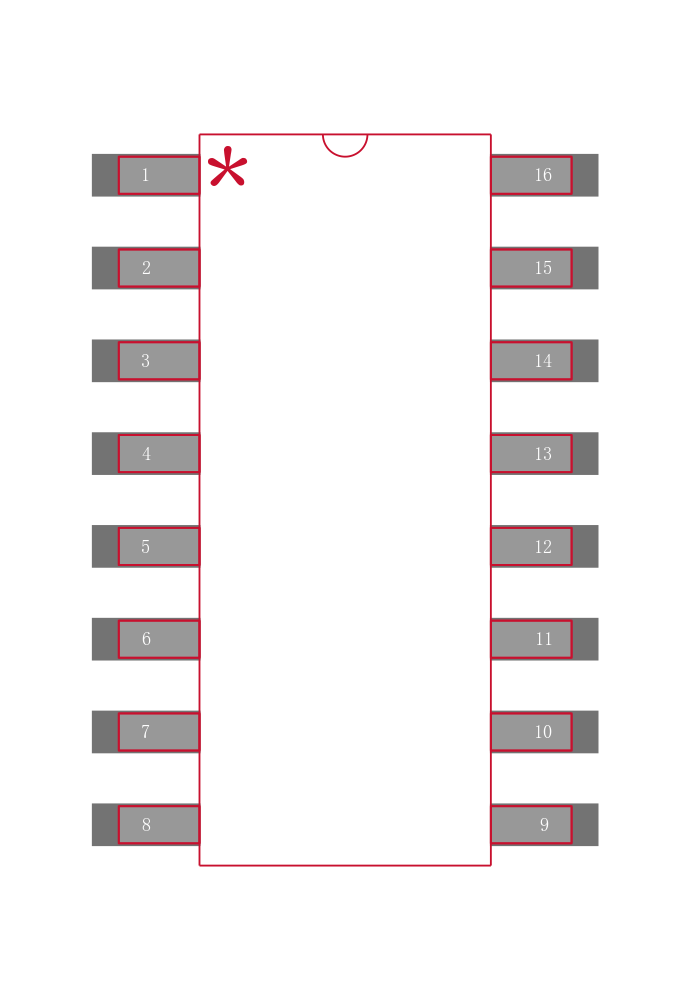

The is a PWM Control Circuit incorporates all the functions required in the construction of a pulse-width-modulation PWM control circuit on a single chip. Designed primarily for power-supply control, this device offers the flexibility to tailor the power-supply control circuitry to a specific application. The error amplifiers exhibit a common-mode voltage range. The dead-time control comparator has a fixed offset that provides approximately 5% dead time. The on-chip oscillator can be bypassed by terminating RT to the reference output and providing a saw tooth input to CT or it can drive the common circuits in synchronous multiple-rail power supplies.

.

Complete PWM power-control circuitry

.

Uncommitted outputs for 200mA sink or source current

.

Output control selects single-ended or push-pull operation

.

Internal circuitry prohibits double pulse at either output

.

Variable dead time provides control over total range

.

Internal regulator provides a stable 5V reference supply with 5% tolerance

.

Circuit architecture allows easy synchronization

.

Green product and no Sb/Br
