1A 低压降稳压器 tab GND 4-SOT-223 -40 to 125
The TLV1171 low-dropout LDO linear regulator is a low input voltage version of the popular 1117 voltage regulator.
The TLV1171 is an extremely low-power device that consumes 500x lower quiescent current than the traditional 1117 voltage regulator, making the TLV1171 suitable for applications that mandate very low standby current. The TLV1171 LDO is also stable with 0 mA of load current; there is no minimum load requirement, making the device an ideal choice for applications where the regulator is required to power very small loads during standby in addition to large currents on the order of 1 A during normal operation. The TLV1171 offers excellent line and load transient performance, resulting in very small magnitude output voltage undershoots and overshoots when the load current requirement changes from less than 1 mA to more than 500 mA.
A precision band gap and error amplifier provides 1.5% accuracy. A very high power-supply rejection ratio enables the device to be used for post-regulation after a switching regulator. Other valuable features include low output noise and low-dropout voltage.
The device is internally compensated to be stable with 0-Ω equivalent series resistance ESR capacitors. These key advantages enable the use of cost-effective, small-size ceramic capacitors. Cost-effective capacitors that have higher bias voltages and temperature derating can also be used if desired.

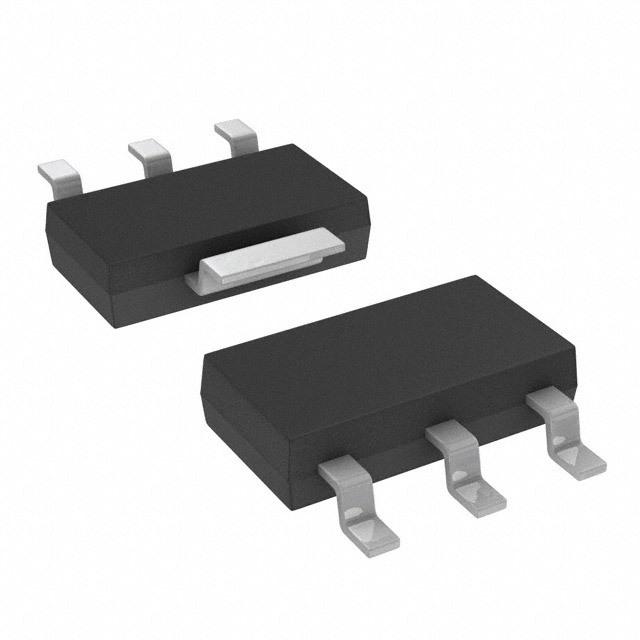

The TLV1171 is available in a SOT223 package. For alternate pin outs of the device, refer to the TLV1117LV.
输出接口数 1
输出电压 1.5 V
输出电流 1 A
静态电流 0.05 mA
输出电容类型 Ceramic
跌落电压 0.115V @200mA,0.455V @800mA,0.57V @1A,0.285V @500mA
调节输出数 1
输入电压Max 5.5 V
输入电压Min 2 V
输出电流Max 1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1.5 %
输入电压 ≤5.5 V
安装方式 Surface Mount
引脚数 4

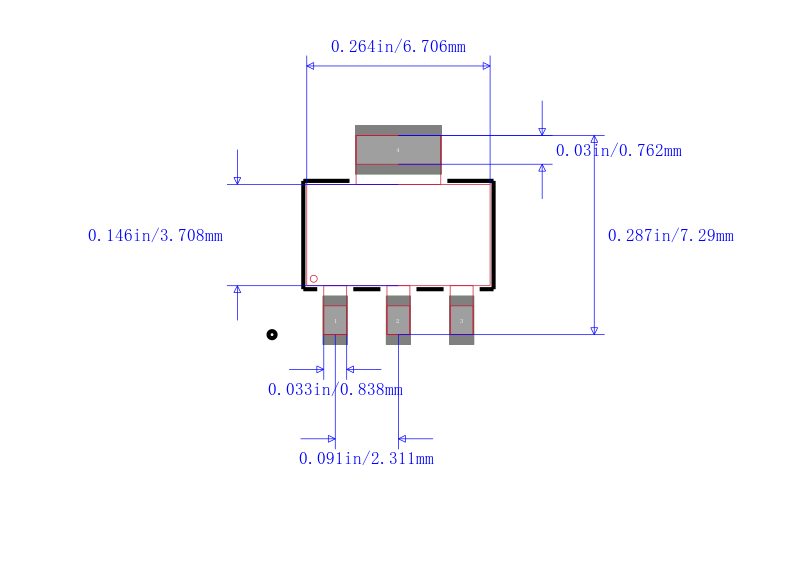

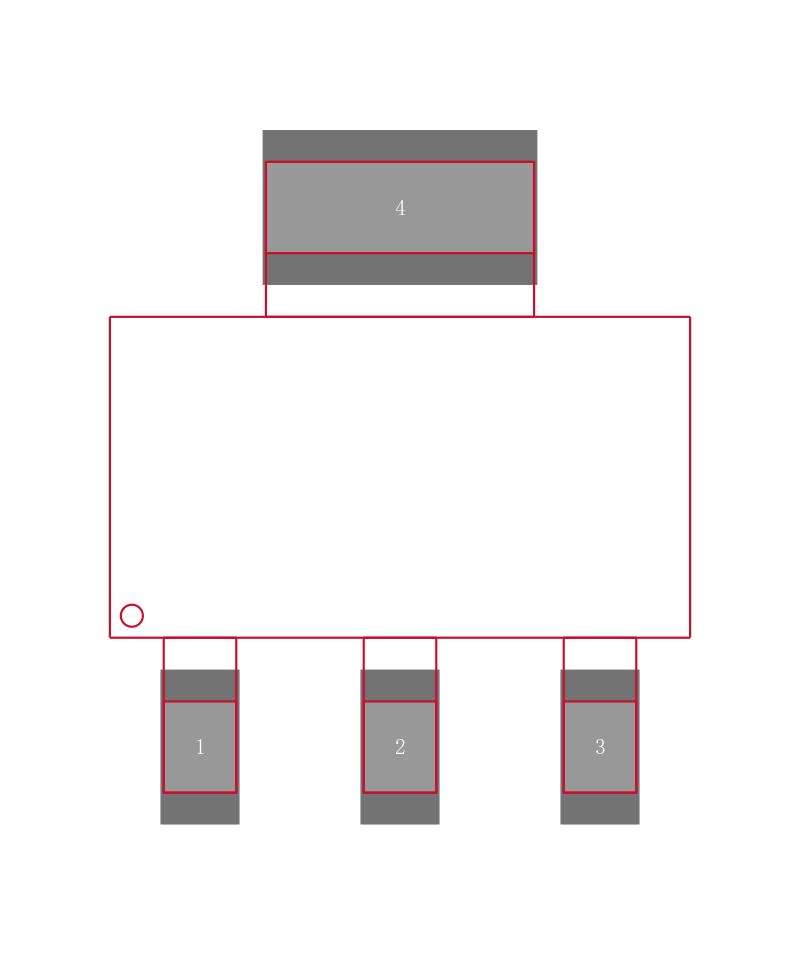

封装 TO-261-4
封装 TO-261-4
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
