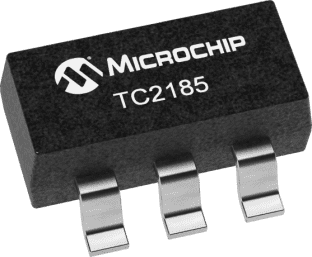

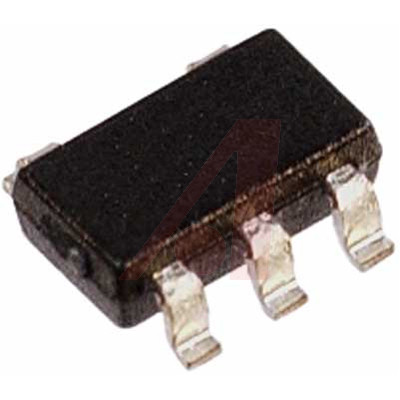

TC2185系列 150mA 1.8V CMOS LDO 具有关断和参考旁路功能-SOT-23-5
PMIC - 稳压器 - 线性 正 固定 输出 150mA SOT-23-5
得捷:
IC REG LINEAR 1.8V 150MA SOT23-5
立创商城:
TC2185-1.8VCTTR
贸泽:
LDO Voltage Regulators 150mA LDO w/Shtdn
艾睿:
Make a theoretical system actual by providing stable voltages with this LDO TC2185-1.8VCTTR linear regulator from Microchip Technology. It has an overall accuracy of ±0.4 %. Its typical dropout voltage at current is 0.09@100mA|0.14@150mA V. This device has a maximum power dissipation of 318 mW. This voltage regulation device&s;s single output can produce a current up to 0.15 A. It only needs a voltage of at least 2.7 V while not exceeding 6 V to effectively power your circuit. With a fixed output that has a voltage of 1.8 V, this is power management at its best. To produce a constant current at your output, supply your circuit with a load regulation of 0.43%Typ and line regulation of 0.05%Typ. Its maximum power dissipation is 318 mW. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. The maximum dropout voltage is 0.14@100mA|0.21@150mA V.
Allied Electronics:
150mA LDO w/ Shutdown & V REF BYPASS, TC1185 upgrade5 SOT-23 T/R
安富利:
LDO Regulator Pos 1.8V 0.15A 5-Pin SOT-23A T/R
输出接口数 1
输入电压DC 2.70V min
输出电压 1.8 V
输出电流 150 mA
耗散功率 0.318 W
静态电流 0.055 mA
输出电容类型 Ceramic
跌落电压 0.09V @100mA
输入电压Max 6 V
输入电压Min 2.7 V
输出电流Max 0.15 A
工作温度Max 125 ℃
工作温度Min 40 ℃
耗散功率Max 318 mW
精度 ±0.4 %
输入电压 2.7V ~ 6V
安装方式 Surface Mount
引脚数 5
封装 SOT-23-5
长度 3.1 mm
宽度 1.8 mm
高度 1.3 mm
封装 SOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TC2185-1.8VCTTR Microchip 微芯 | 当前型号 | 当前型号 |
TC1185-1.8VCT713 微芯 | 完全替代 | TC2185-1.8VCTTR和TC1185-1.8VCT713的区别 |
MIC5247-1.8BM5 迈瑞 | 功能相似 | TC2185-1.8VCTTR和MIC5247-1.8BM5的区别 |
MIC5247-1.8YM5 迈瑞 | 功能相似 | TC2185-1.8VCTTR和MIC5247-1.8YM5的区别 |
