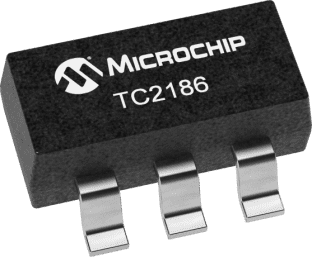

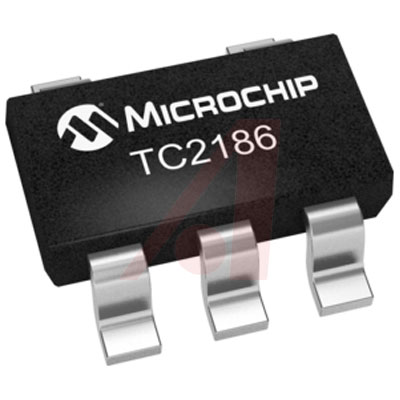

TC2186系列 150mA 3.3V CMOS LDO 具有关断和错误输出功能-SOT-23-5
PMIC - 稳压器 - 线性 正 固定 输出 150mA SOT-23-5
得捷:
IC REG LINEAR 3.3V 150MA SOT23-5
立创商城:
TC2186-3.3VCTTR
贸泽:
LDO Voltage Regulators 150mA LDO w/Shtdn
艾睿:
Say goodbye to unstable voltages with this LDO TC2186-3.3VCTTR linear regulator from Microchip Technology. Its typical dropout voltage at current is 0.002@100uA|0.045@50mA V. It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 0.15Min A. With a small input voltage of 2.7 V and a max of 6 V, this will supply sufficient power to your circuit. With a fixed output that has a voltage of 3.3 V, this is power management at its best. To produce a constant current at your output, supply your circuit with a load regulation of 2% and line regulation of 0.5%. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. The maximum dropout voltage is 0.07@50mA V. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C.
Allied Electronics:
150mA LDO with Shutdown & /Error output, TC1186 upgrade
安富利:
LDO Regulator Pos 3.3V 0.15A 5-Pin SOT-23A T/R
Chip1Stop:
LDO Regulator Pos 3.3V 0.15A Automotive 5-Pin SOT-23A T/R
Win Source:
50 mA, 100 mA, and 150 mA CMOS LDOs with Shutdown and Error Output
输出接口数 1
输入电压DC 2.70V min
输出电压 3.3 V
输出电流 150 mA
静态电流 55.0 µA
输出电容类型 Ceramic
跌落电压 0.045V @50mA
输入电压Max 6 V
输入电压Min 2.7 V
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 ≤6 V
安装方式 Surface Mount
引脚数 5
封装 SOT-23-5
长度 3.1 mm
宽度 1.8 mm
高度 1.3 mm
封装 SOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TC2186-3.3VCTTR Microchip 微芯 | 当前型号 | 当前型号 |
TC2186-3.0VCTTR 微芯 | 类似代替 | TC2186-3.3VCTTR和TC2186-3.0VCTTR的区别 |
TC2186-2.7VCTTR 微芯 | 类似代替 | TC2186-3.3VCTTR和TC2186-2.7VCTTR的区别 |
TC2186-2.8VCTTR 微芯 | 类似代替 | TC2186-3.3VCTTR和TC2186-2.8VCTTR的区别 |
