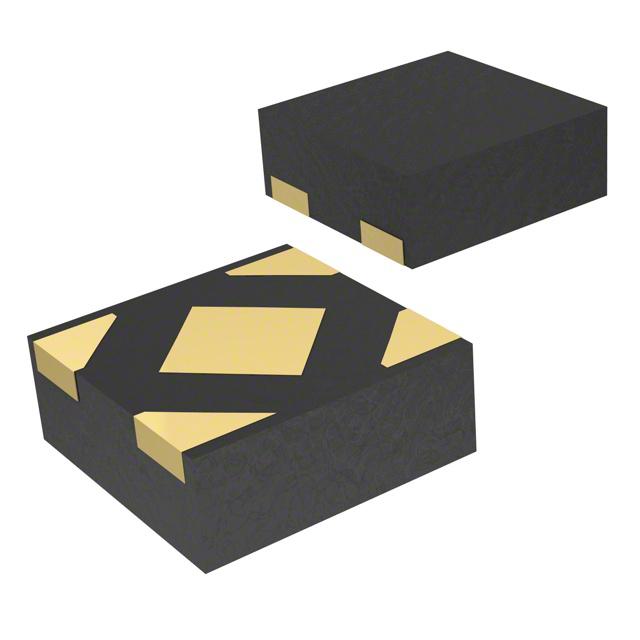

TLV73325PDQNR

低压差稳压器 Capacitr-Free 300-mA 4-X2SON -40 to 125

PMIC - 稳压器 - 线性 正 固定 输出 300mA 4-X2SON（1x1）

立创商城:
TLV73325PDQNR

得捷:
IC REG LINEAR 2.5V 300MA 4X2SON

贸泽:
低压差稳压器 Capacitr-Free 300-mA 4-X2SON -40 to 125

艾睿:
Control the voltage level of your circuit with this LDO TLV73325PDQNR linear regulator from Texas Instruments. Its typical dropout voltage at current is 0.125@300mA V. It has an overall accuracy of ±1 %. This voltage regulation device&s;s single output can produce a current up to 0.3 A. By only needing an input voltage of 1.4 V with a maximum of 5.5 V, this is the best way to control the power in your circuit. With an adjustable output that has a voltage of 1 to 3.3 V, this is power management at its best. Operate at a constant current by utilizing the load regulation of 16mVTyp and line regulation of 1mV/VTyp. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. The maximum dropout voltage is 0.42@300mA|0.37@300mA|0.27@300mA|0.26@300mA|0.45@300mA|0.4@300mA|0.3@300mA|0.29@300mA|0.27@300mA V. Its polarity is positive.

安富利:
LDO Regulator Pos 2.5V 0.3A 4-Pin X2SON T/R

Verical:
LDO Regulator Pos 1V to 3.3V 0.3A 4-Pin X2SON EP T/R

德州仪器TI:
300-mA, capacitor-free, low-IQ, low-dropout voltage regulator with enable
