低压差稳压器 LOW-DROPOUT VOLTAGE REGULATORS
PMIC - 稳压器 - 线性 输出 150mA 8-SOIC
得捷:
IC REG LINEAR 10V 150MA 8SOIC
立创商城:
TL750L10CDR
德州仪器TI:
150-mA, 26-V, low-dropout voltage regulator
贸泽:
低压差稳压器 Pnp Low Current
艾睿:
Make a theoretical system actual by providing stable voltages with this LDO TL750L10CDR linear regulator from Texas Instruments. It has an overall accuracy of ±4 %. This voltage regulation device&s;s single output can produce a current up to 0.15 A. By only needing an input voltage of 11 V with a maximum of 26 V, this is the best way to control the power in your circuit. With a fixed output that has a voltage of 10 V, this is power management at its best. Maintain a constant voltage level with a load regulation of 100mV and line regulation of 60mV. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. Its polarity is positive. This voltage regulation device has a minimum operating temperature of 0 °C and a maximum of 125 °C. The maximum dropout voltage is 0.2@10mA|0.6@150mA V.
安富利:
LDO Regulator Pos 10V 0.15A 8-Pin SOIC T/R
Chip1Stop:
LDO Regulator Pos 10V 0.15A 8-Pin SOIC T/R
Verical:
LDO Regulator Pos 10V 0.15A 8-Pin SOIC T/R
DeviceMart:
IC REG LDO 10V .15A 8-SOIC
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 10V 150mA 8-SOIC
输出接口数 1
输出电压 10 V
输出电流 150 mA
静态电流 1.00 mA
输出电容类型 Capacitor Free
跌落电压 600 mV
调节输出数 1
输入电压Max 26 V
输入电压Min 11 V
输出电压Min 10 V
输出电流Max 0.15 A
工作温度Max 125 ℃
工作温度Min 0 ℃
精度 4 %
输入电压 11V ~ 26V
安装方式 Surface Mount
引脚数 8

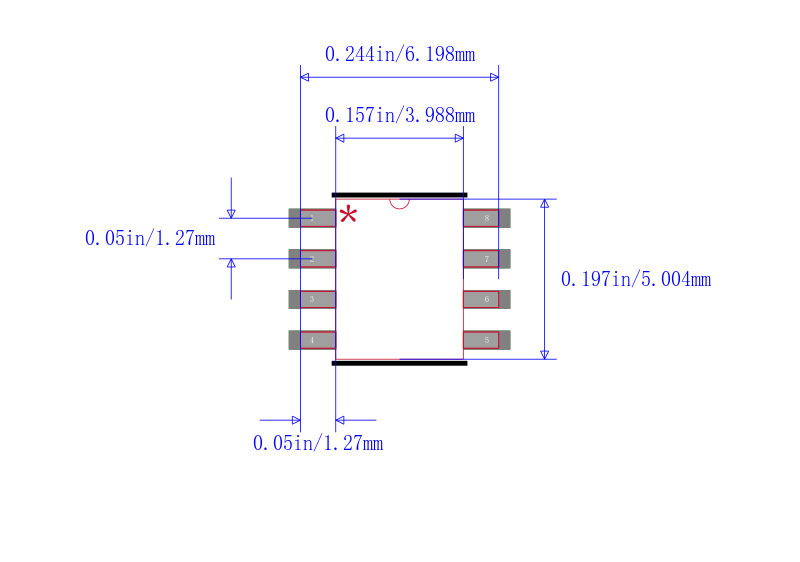

封装 SOIC-8
长度 4.9 mm
宽度 3.91 mm
高度 1.58 mm
封装 SOIC-8
工作温度 0℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TL750L10CDR TI 德州仪器 | 当前型号 | 当前型号 |
TL750L10CD 德州仪器 | 类似代替 | TL750L10CDR和TL750L10CD的区别 |
TL750L10CDRG4 德州仪器 | 类似代替 | TL750L10CDR和TL750L10CDRG4的区别 |
TL750L10CDG4 德州仪器 | 类似代替 | TL750L10CDR和TL750L10CDG4的区别 |
