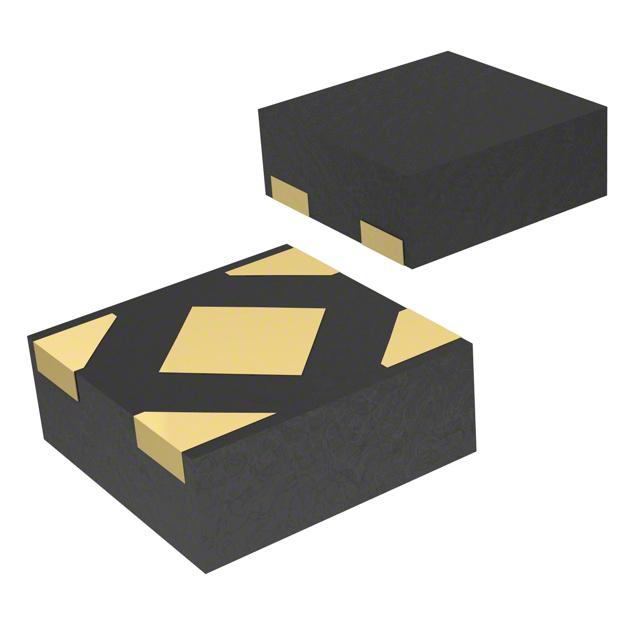

具有使能功能的 300mA、低 IQ、低压降无电容稳压器 4-X2SON -40 to 125
PMIC - 稳压器 - 线性 正 固定 1 输出 300mA 4-X2SON(1x1)
得捷:
IC REG LINEAR 2.8V 300MA 4X2SON
立创商城:
TLV73328PDQNR
艾睿:
Bring stability by using this TLV73328PDQNR linear regulator developed by Texas Instruments. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components.
安富利:
The TLV733 series of low-dropout linear regulators LDOs are ultra-small, low quiescent current LDOs that can source 300 mA with good line and load transient performance. These devices provide a typical accuracy of 1%.The TLV733 series is designed with a modern capacitor-free architecture to ensure stability without an input or output capacitor. The removal of the output capacitor allows for a very small solution size, and can eliminate inrush current at startup. However, the TLV733 series is also stable with ceramic output capacitors if an output capacitor is necessary. The TLV733 also provides foldback current control during device power-up and enabling if an output capacitor is used. This functionality is especially important in battery-operated devices.The TLV733 provides an active pull-down circuit to quickly discharge output loads when disabled.The TLV733 series is available in standard DBV SOT-23 and DQN X2SON packages.
Verical:
LDO Regulator Pos 2.8V 0.3A 4-Pin X2SON EP T/R
德州仪器TI:
300-mA, capacitor-free, low-IQ, low-dropout voltage regulator with enable
输出接口数 1
输出电压 2.8 V
输出电流 300 mA
供电电流 60 µA
静态电流 34.0 µA
输出电容类型 Ceramic
跌落电压 122 mV
调节输出数 1
输入电压Max 5.5 V
输入电压Min 1.4 V
输出电压Min 2.8 V
输出电流Max 0.3 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1 %
输入电压 5.5 V
安装方式 Surface Mount
引脚数 4
封装 X2SON-4
封装 X2SON-4
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TLV73328PDQNR TI 德州仪器 | 当前型号 | 当前型号 |
TLV73328PDQNT 德州仪器 | 类似代替 | TLV73328PDQNR和TLV73328PDQNT的区别 |
TLV73328PDQNR3 德州仪器 | 类似代替 | TLV73328PDQNR和TLV73328PDQNR3的区别 |
