路200mA的低静态电流,超低噪声,高PSRR ,低压降线性稳压器 200mA Low Quiescent Current, Ultra-Low Noise, High PSRR, Low Dropout Linear Regulator
If you need to maintain a steady voltage on your circuit, then this LDO linear regulator from Texas Instruments is perfect for you! It has an overall accuracy of ±1 %. This voltage regulation device"s single output can produce a current up to 0.2 A. It only needs a voltage of at least 2.7 V while not exceeding 6.5 V to effectively power your circuit. With a fixed output that has a voltage of 2.5 V, this is power management at its best. Using a load regulation of 0.002%/mATyp and line regulation of 0.02%/VTyp is needed for a programmable DC power supply. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 85 °C.
输出接口数 1
输出电压 2.5 V
输出电流 200 mA
耗散功率 500 W
静态电流 40.0 µA
输出电容类型 Ceramic
跌落电压 100 mV
调节输出数 1
输入电压Max 6.5 V
输入电压Min 2.7 V
输出电压Min 2.5 V
输出电流Max 0.2 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 2 %
输入电压 2.7V ~ 6.5V
安装方式 Surface Mount
引脚数 5

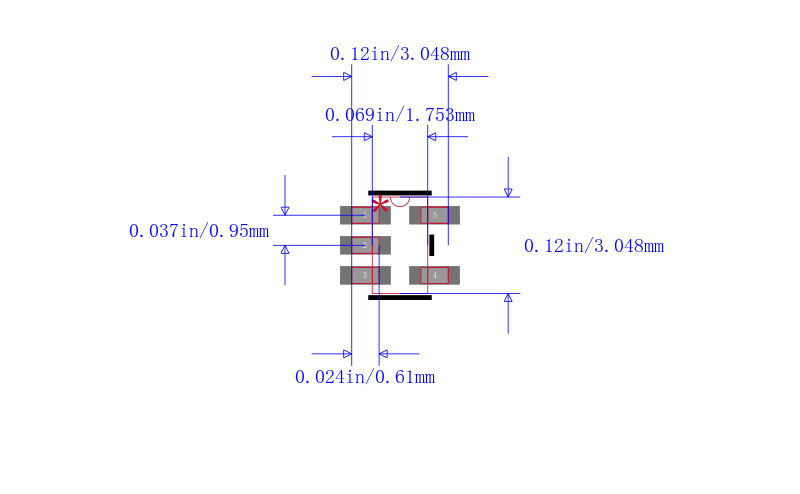

封装 SOT-23-5
长度 2.9 mm
宽度 1.6 mm
高度 0.87 mm
封装 SOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS79925DDCR TI 德州仪器 | 当前型号 | 当前型号 |
TPS79925DDCT 德州仪器 | 类似代替 | TPS79925DDCR和TPS79925DDCT的区别 |
TPS79925DDCTG4 德州仪器 | 类似代替 | TPS79925DDCR和TPS79925DDCTG4的区别 |
TPS79925DDCRG4 德州仪器 | 类似代替 | TPS79925DDCR和TPS79925DDCRG4的区别 |
