TLV7111323DDSET

双通道， 200mA，低智商低压降稳压器用于便携式设备 Dual, 200mA, Low-IQ Low-Dropout Regulator for Portable Devices

DESCRIPON

The TLV710 and TLV711 series of dual, low-dropout LDO linear regulators are low quiescent current

devices with excellent line and load transient performance. These LDOs are designed for power-sensitive applications. These devices provide a typical accuracy of 2% over temperature.

FEATURES

• Very Low Dropout:

– 150mV at IOUT = 200mA and VOUT = 2.8V

– 75mV at IOUT = 100mA and VOUT = 2.8V

– 40mV at IOUT = 50mA and VOUT = 2.8V

• 2% Accuracy Over Temperature

• Low IQ of 35mA per Regulator

• Multiple Fixed Output Voltage Combinations Possible from 1.2V to 4.8V

• High PSRR: 70dB at 1kHz

• Stable with Effective Capacitance of 0.1mF1

• Over-Current and Thermal Protection

• Dedicated VREF for Each Output Minimizes Crosstalk

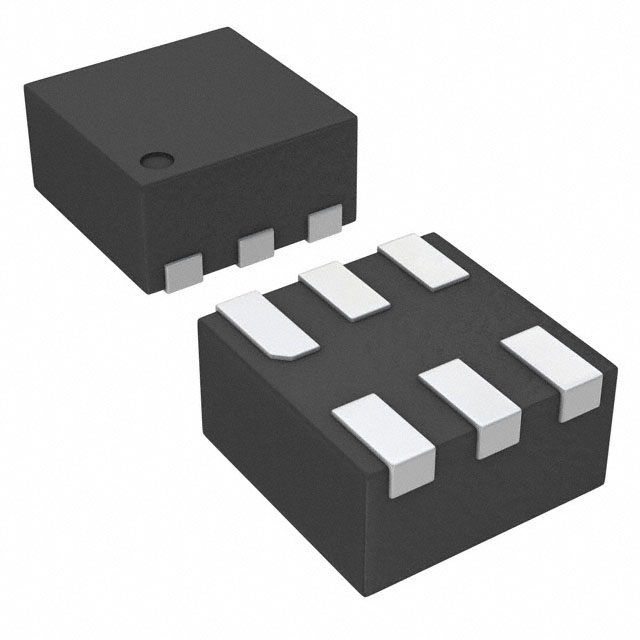

• Available in 1.5mm × 1.5mm SON-6 Package

APPLICATIONS

• Wireless Handsets, Smart Phones, PDAs

• MP3 Players and Other Handheld Products
