电容 - 免费,双通道, 150毫安,低压差稳压器( LDO )的1,2-毫米1,2毫米SON封装 Capacitor-Free, Dual, 150-mA, Low-Dropout Voltage Regulator LDO in 1,2-mm 1,2-mm SON Package
PMIC - 稳压器 - 线性 正 固定 输出 150mA 6-X2SON(1.2x1.2)
得捷:
IC REG LDO 3.3V/1.8V 0.15A 6-SON
立创商城:
TLV7163318PDPQR
德州仪器TI:
150-mA, dual-channel low-dropout voltage regulator with enable
艾睿:
Maintain a steady voltage level with this LDO TLV7163318PDPQR linear regulator from Texas Instruments. Its typical dropout voltage at current is 0.21@150mA|0.35@150mA V. It has an overall accuracy of ±1 %. This voltage regulation device&s;s 2 outputs can produce a current up to 0.15Min|0.15Min A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 1.4 V that does not exceed 5.5 V. With a fixed output that has a voltage of 1.8|3.3 V, this is power management at its best. To produce a constant current at your output, supply your circuit with a load regulation of 0.07mV/mATyp and line regulation of 0.02%/VTyp. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. The maximum dropout voltage is 0.42@150mA|0.575@150mA V. Its polarity is positive.
安富利:
LDO Regulator Pos 3.3V/1.8V 0.15A 6-Pin X2SON T/R
Verical:
LDO Regulator Pos 1.8V3.3V 0.15A/0.15A 6-Pin X2SON EP T/R
输出接口数 2
输出电流 150 mA
静态电流 50.0 µA
输出电容类型 Ceramic
跌落电压 0.21V @150mA
调节输出数 2
输入电压Max 5.5 V
输入电压Min 1.4 V
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1 %
输入电压 1.4V ~ 5.5V
安装方式 Surface Mount

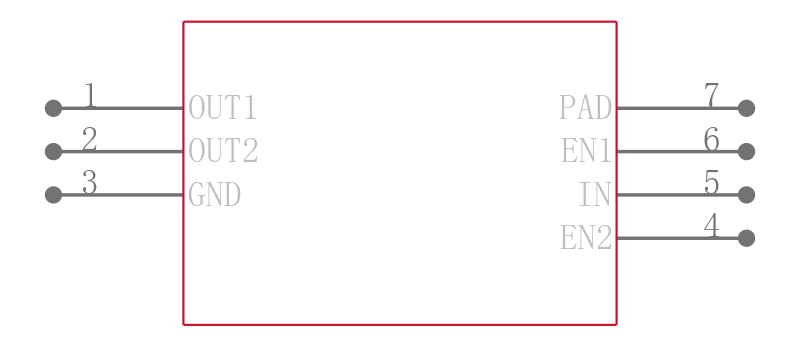

引脚数 6
封装 XFDFN-6
封装 XFDFN-6
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TLV7163318PDPQR TI 德州仪器 | 当前型号 | 当前型号 |
TLV7163318PDPQT 德州仪器 | 完全替代 | TLV7163318PDPQR和TLV7163318PDPQT的区别 |
RP152L006A-TR 理光 | 功能相似 | TLV7163318PDPQR和RP152L006A-TR的区别 |
RP152L006B-TR 理光 | 功能相似 | TLV7163318PDPQR和RP152L006B-TR的区别 |
