14位1/3/8 MSPS DSP兼容模拟数字转换器具有内部参考和PGA 14-BIT, 1/3/8 MSPS DSP COMPATIBLE ANALOG-TO-DIGITAL CONVERTERS WITH INTERNAL REFERENCE AND PGA
The THS1401, THS1403, and THS1408 are 14-bit, 1/3/8 MSPS, single supply analog-to-digital converters with an internal reference, differential inputs, programmable input gain, and an on-chip sample and hold amplifier.
Implemented with a CMOS process, the device has outstanding price/performance and power/speed ratios. The THS1401, THS1403, and THS1408 are designed for use with 3.3-V systems, and with a high-speed uP compatible parallel interface, making them the first choice for solutions based on high-performance DSPs like the TMS320C6000 series.
The THS1401, THS1403, and THS1408 are available in a TQFP-48 package in standard commercial and industrial temperature ranges. The THS1401, THS1403, and THS1408 are available in a PQFP-48 package in automotive temperature range, and the THS1408 is available in a PQFP-48 package in military temperature range.
电源电压DC 3.00V min
供电电流 81.0 mA
电路数 1
通道数 1
位数 14
耗散功率 270 mW
采样率 8 Msps
功耗 270 mW
模数转换数ADC 1
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 360 mW
输入通道数 1
安装方式 Surface Mount

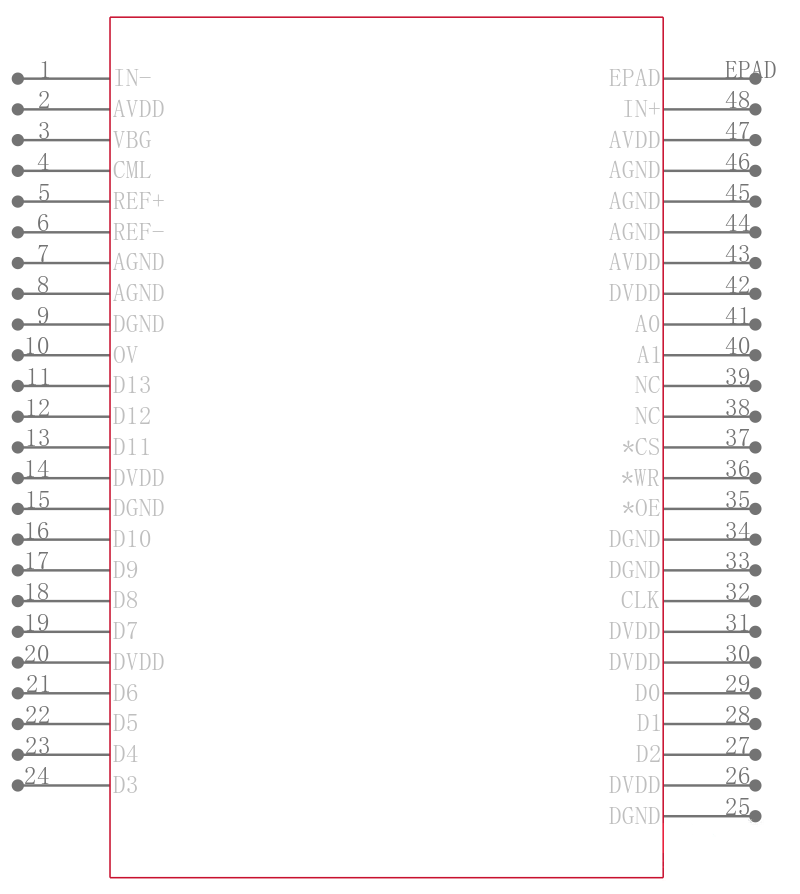

引脚数 48
封装 TQFP-48
长度 7 mm
宽度 7 mm
高度 1 mm
封装 TQFP-48
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 3A991.c.3
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
THS1408IPFB TI 德州仪器 | 当前型号 | 当前型号 |
THS1403CPFB 德州仪器 | 完全替代 | THS1408IPFB和THS1403CPFB的区别 |
THS1403IPFB 德州仪器 | 类似代替 | THS1408IPFB和THS1403IPFB的区别 |
THS1401QPHP 德州仪器 | 类似代替 | THS1408IPFB和THS1401QPHP的区别 |
