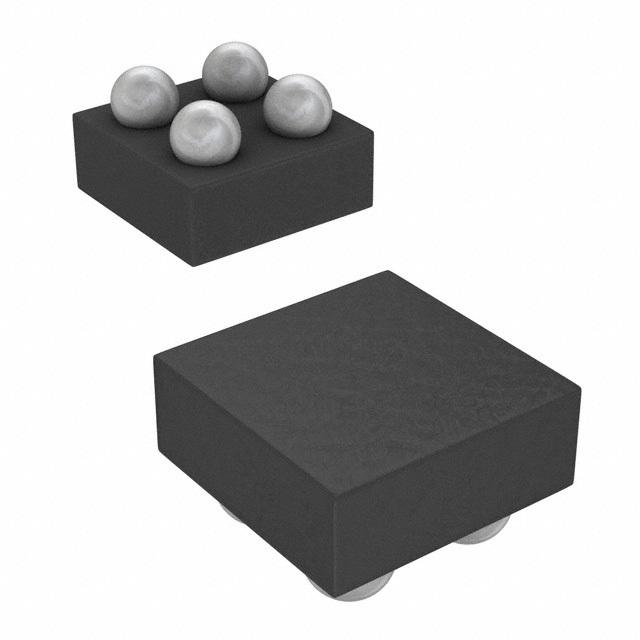

具有低噪声和使能功能的 200mA、高 PSRR、低 IQ、低压降稳压器 4-DSBGA -40 to 125
PMIC - 稳压器 - 线性 输出 200mA 4-DSBGA(0.8x0.8)
得捷:
IC REG LINEAR 3.6V 200MA 4DSBGA
立创商城:
TLV70536YFPR
德州仪器TI:
200-mA, high-PSRR, low-IQ, low-dropout voltage regulator with low-noise & enable
贸泽:
LDO Voltage Regulators 200-mA Low IQ LowDropoutRegulator
艾睿:
This LDO TLV70536YFPR linear regulator from Texas Instruments is used to manipulate the voltage level of your circuit. This device has a maximum power dissipation of 714 mW. It has an overall accuracy of ±0.5 %. Its typical dropout voltage at current is 0.145@200mA V. This voltage regulation device&s;s single output can produce a current up to 0.2 A. The best way to provide power to your application is by using this, which needs a voltage of at least 2 V and no higher than 5.5 V. With a fixed output that has a voltage of 3.6 V, this is power management at its best. Maintain a constant voltage level with a load regulation of 1mVTyp and line regulation of 0.05mVTyp. Its maximum power dissipation is 714 mW. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. The maximum dropout voltage is 0.25@200mA V.
安富利:
LDO Regulator Pos 3.6V 0.55A 4-Pin DSBGA T/R
输出接口数 1
输出电压 3.6 V
输出电流 200 mA
供电电流 55µA ~ 315µA
静态电流 0.035 mA
输出电容类型 Ceramic
跌落电压 0.145V @200mA
调节输出数 1
输入电压Max 5.5 V
输入电压Min 2 V
输出电压Min 3.6 V
输出电流Max 0.55 A
工作温度Max 125 ℃
工作温度Min 40 ℃
精度 ±0.5 %
输入电压 2V ~ 5.5V
安装方式 Surface Mount
引脚数 4
封装 XFBGA-4
封装 XFBGA-4
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TLV70536YFPR TI 德州仪器 | 当前型号 | 当前型号 |
TLV70536YFPT 德州仪器 | 类似代替 | TLV70536YFPR和TLV70536YFPT的区别 |
