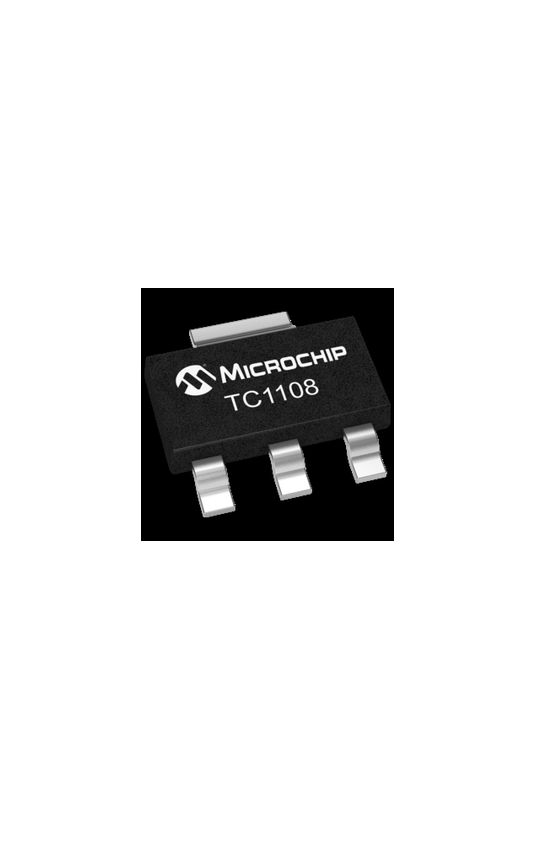

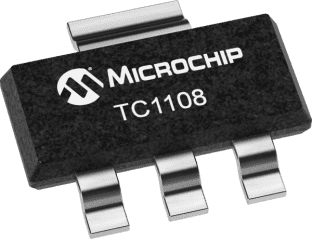

TC1108-5.0VDBTR

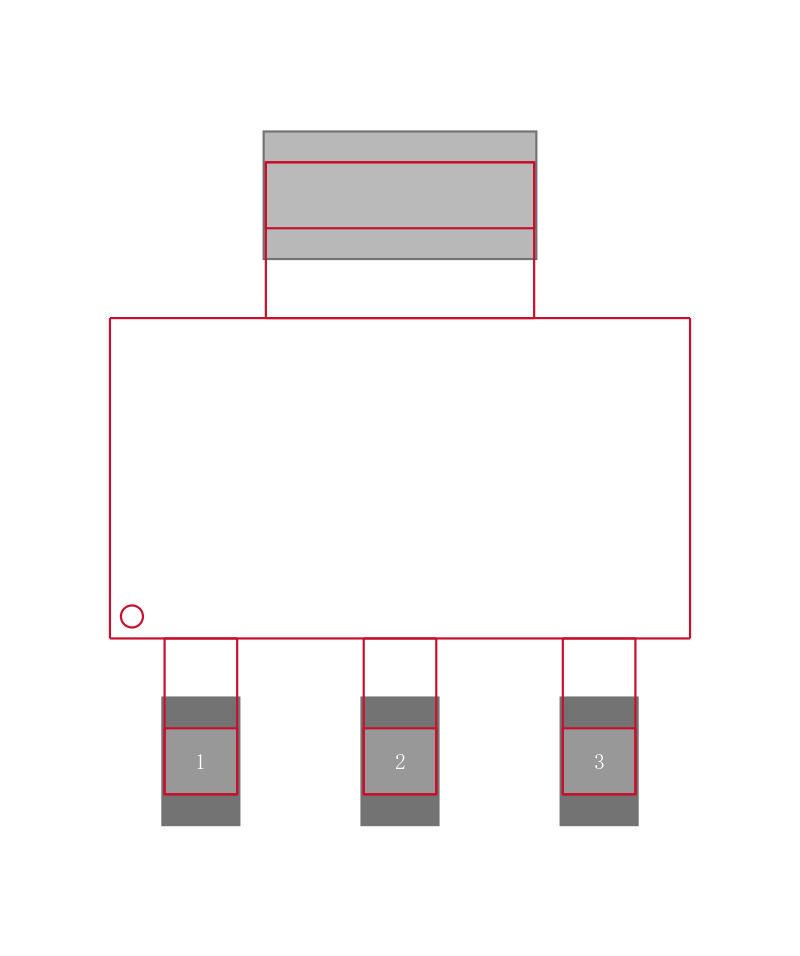

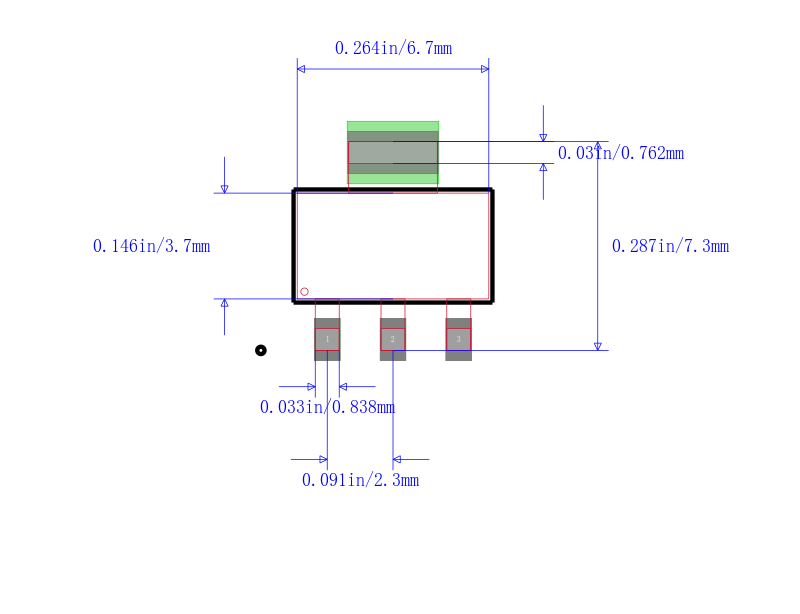

LDO Regulator Pos 5V 0.3A 4Pin3+Tab SOT-223 T/R

General Description

The TC1108 is a fixed output, high accuracy typically ±0.5% CMOS low dropout regulator. Total supply current is typically 50A at full load 20 to 60 times lower than in bipolar regulators.

Features

• Extremely Low Supply Current 50A, Typ.

• Very Low Dropout Voltage

• 300mA Output Current

• High Output Voltage Accuracy

• Standard or Custom Output Voltages

• Over Current and Over Temperature Protection

Applications

• Battery Operated Systems

• Portable Computers

• Medical Instruments

• Instrumentation

• Cellular/GSM/PHS Phones

• Linear Post-Regulators for SMPS

• Pagers
