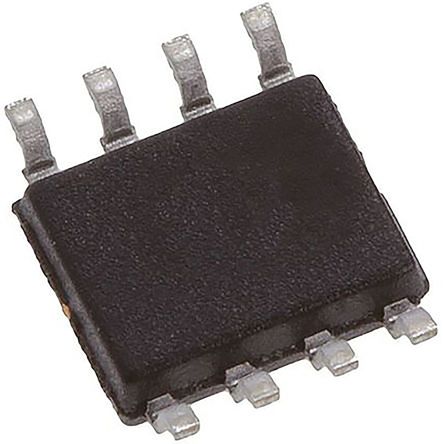

INFINEON TDA48632GXUMA2 芯片, PFC控制器, 升压, 10V-20V, SOIC-8
PFC 控制器 - DCM,
Infineon 的使用不连续传导模式 DVM 控制的 PFC（功率因数校正）控制器适用于 SMPS 交流-直流转换器应用。
得捷:
IC PFC CTRLR DCM 8DSO
欧时:
Infineon TDA48632GXUMA2 功率因数控制器, -0.3 → +22 V电源, 8引脚 SOIC封装
贸泽:
功率因数校正 - PFC AC/DC STANDALONE
艾睿:
Are you looking to save on your system&s;s operating costs? The Infineon Technologies power factor correction TDA48632GXUMA2 power factor improvement can do just that. It operates in DCM mode. This power factor controller has a minimum operating temperature of -40 °C and a maximum of 150 °C. This device has a minimum operating supply voltage of -0.3 V and a maximum of 22 V. This device has a start-up supply current of 0.02 mA.
Verical:
Power Factor Correction Controller 0.02mA 8-Pin DSO T/R
Win Source:
PFC IC Discontinuous Conduction DCM PG-DSO-8
频率 300 kHz
电源电压DC 10.0V min
针脚数 8
工作温度Max 150 ℃
工作温度Min -40 ℃
电源电压 12.5V ~ 20V
电源电压Max 20 V
电源电压Min 10 V
安装方式 Surface Mount
引脚数 8
封装 PG-DSO-8
长度 5 mm
宽度 4 mm
高度 1.5 mm
封装 PG-DSO-8
工作温度 -40℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Lighting, 照明, Electronic Ballasts, Power Management, SwitchedMode Power Supplies, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
