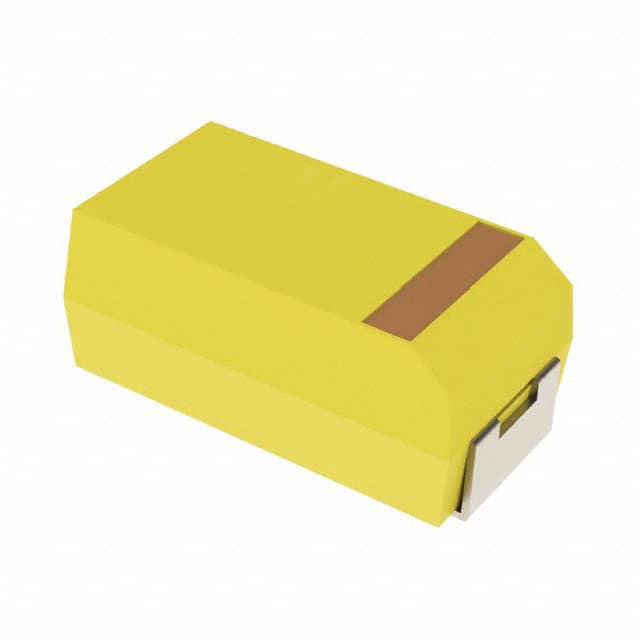

KEMET T491C106K016AH CAP, TANTALUM, 10UF, 16V, CASE C 新
Do you need a capacitor for a sample and hold circuit? Then use this solid tantalum capacitor from Kemet for its low leakage current! It can withstand a voltage of 16 VDC. Its leakage current is 1.6 μA. This solid capacitor has a maximum operating temperature of 125 °C. Its capacitance value is 10uF. This product is 6 mm long, 2.5 mm tall and 3.2 mm deep. It has a tolerance of 10%.
额定电压DC 16.0 V
电容 10 µF
等效串联电阻ESR 1.8 Ω
容差 ±10 %
纹波电流 247 mA
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 16 V
安装方式 Surface Mount
封装 6032
长度 6.00 mm
宽度 3.20 mm
高度 2.5 mm
封装 6032
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
寿命(小时) 2000h @85℃
RoHS标准 Non-Compliant
含铅标准 Contains Lead
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
T491C106K016AH KEMET Corporation 基美 | 当前型号 | 当前型号 |
T491C106K016AT 基美 | 完全替代 | T491C106K016AH和T491C106K016AT的区别 |
T491C106M016AT 基美 | 类似代替 | T491C106K016AH和T491C106M016AT的区别 |
T491C106K016AS 基美 | 类似代替 | T491C106K016AH和T491C106K016AS的区别 |
