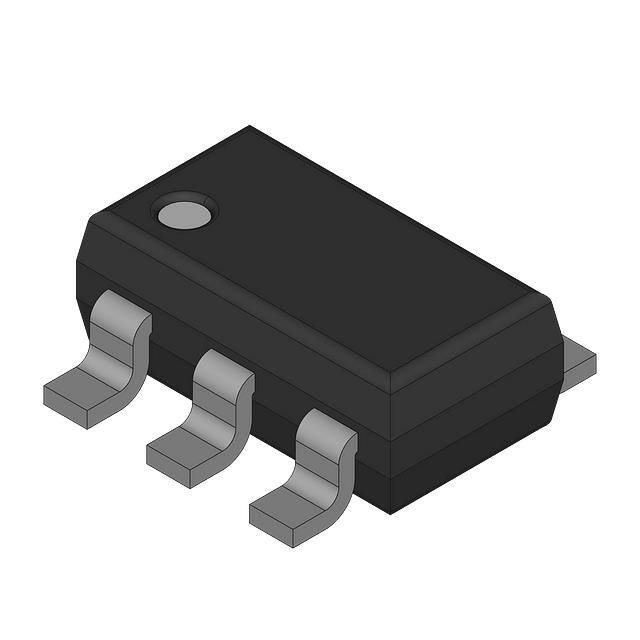

250mA,低静态电流,超低噪声,高PSRR低压降线性稳压器 250mA, Low Quiescent Current, Ultra-Low Noise, High PSRR Low-Dropout Linear Regulator
PMIC - 稳压器 - 线性 正 固定 输出 250mA SOT-23-5
得捷:
IC REG LINEAR 3.3V 250MA SOT23-5
立创商城:
正 Vin=6.5V Vout=3.3V 250mA 60dB
德州仪器TI:
250-mA, low-IQ, low-dropout voltage regulator with enable
艾睿:
Don&s;t let unpredictable voltage levels ruin your circuit! Use this LDO TPS73433DDCR linear regulator from Texas Instruments to control your voltage levels! This device has a maximum power dissipation of 360 mW. Its typical dropout voltage at current is 0.125@250mA V. It has an overall accuracy of ±1 %. This voltage regulation device&s;s single output can produce a current up to 0.25 A. By only needing an input voltage of 2.7 V with a maximum of 6.5 V, this is the best way to control the power in your circuit. With a fixed output that has a voltage of 3.3 V, this is power management at its best. Your circuit has the capability to produce a constant current at its output by using a load regulation of 0.005%/mATyp and line regulation of 0.02%/VTyp. Its maximum power dissipation is 360 mW. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive. The maximum dropout voltage is 0.219@250mA V.
安富利:
LDO Regulator Pos 3.3V 0.25A 5-Pin SOT T/R
Chip1Stop:
Single Channel LDO Single Output LDO, 250mA, Fixed 3.3V, Low Quiescent Current, Low Noise, High PSRR LDO Regulator Pos 3.3V 0.25A 5-Pin TSOT-23 T/R
Verical:
LDO Regulator Pos 3.3V 0.25A 5-Pin TSOT-23 T/R
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 3.3V 250mA 5-SOT
输出接口数 1
输出电压 3.3 V
输出电流 250 mA
供电电流 65 µA
耗散功率 0.36 W
静态电流 44.0 µA
输出电容类型 Ceramic
跌落电压 0.125V @250mA
调节输出数 1
输入电压Max 6.5 V
输入电压Min 2.7 V
输出电压Min 3.3 V
输出电流Max 0.25 A
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 360 mW
精度 2 %
输入电压 ≤6.5 V
安装方式 Surface Mount
引脚数 5
封装 TSOT-23-5
封装 TSOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS73433DDCR TI 德州仪器 | 当前型号 | 当前型号 |
TPS73433DDCT 德州仪器 | 类似代替 | TPS73433DDCR和TPS73433DDCT的区别 |
TPS73433TDDCRQ1 德州仪器 | 类似代替 | TPS73433DDCR和TPS73433TDDCRQ1的区别 |
TPS73433DRVR 德州仪器 | 功能相似 | TPS73433DDCR和TPS73433DRVR的区别 |
