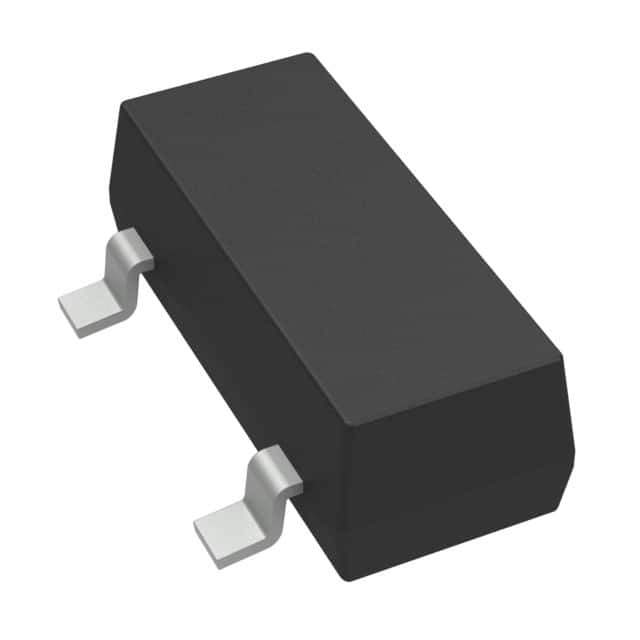

TEXAS INSTRUMENTS TLV809K33DBZT 电压监控器, 低电平有效复位, 2V-6V输入, SOT-23-3
MPU 监控和重置电路,Texas Instruments,0.8V 至 2.99V
Texas Instruments 微处理器电源电压监控和重置电路系列,具有固定阈值电压电平。
得捷:
IC SUPERVISOR 1 CHANNEL SOT23-3
立创商城:
TLV809K33DBZT
德州仪器TI:
3-pin voltage supervisor reset IC with active-low, push-pull reset
欧时:
### MPU 监控和重置电路,Texas Instruments,0.8V 至 2.99VTexas Instruments 微处理器电源电压监控和重置电路系列,具有固定阈值电压电平。### 微处理器电源电压监控和复位电路电源电压监测和监控电路,用于台式机、便携式计算机和笔记本电脑、测试和测量仪器、便携式电池供电设备和多输出电源。电源电压探测器 电源电压监控器 电源监控器 微处理器监控 微处理器电压监控器 微控制器复位电路
贸泽:
Supervisory Circuits 3P Supply Vltg Super
e络盟:
电压监控器, 低电平有效复位, 2V-6V输入, SOT-23-3
艾睿:
For additional circuit stability, add Texas Instruments&s; TLV809K33DBZT microprocessor supervisory circuit, which can act as a backup processor in case the original fails, to your circuit. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This part has an operating temperature range of -40 °C to 85 °C. It has a typical reset threshold voltage of 2.93 V, with a minimum of 2.87 V and a maximum of 2.99 V. This device has a minimum operating supply voltage of 2 V and a maximum of 6 V.
安富利:
Volt Supervisor Supply 3.3V 3-Pin SOT-23 T/R
Chip1Stop:
Volt Supervisor Supply 3.3V 3-Pin SOT-23 T/R
Verical:
Processor Supervisor 2.93V 1 Active Low/Push-Pull 3-Pin SOT-23 T/R
DeviceMart:
IC VOLT SUPERVISOR 2.93V SOT23-3
电源电压DC 2.00V min
供电电流 0.025 mA
针脚数 3
耗散功率 437 mW
静态电流 9.00 µA
阈值电压 2.93 V
复位电压Min 2.87 V
复位电压Max 2.99 V
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 3
封装 SOT-23-3

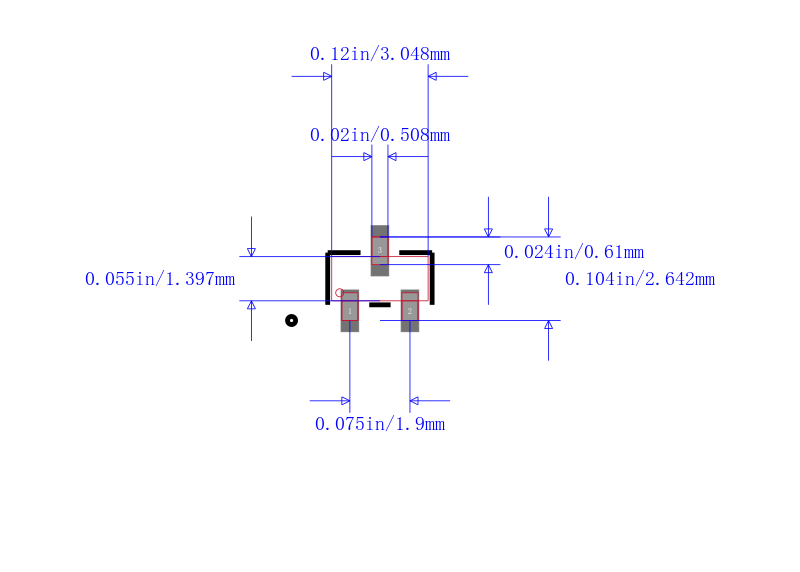

长度 3.04 mm
宽度 1.4 mm
高度 1.02 mm
封装 SOT-23-3
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2018/06/27
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TLV809K33DBZT TI 德州仪器 | 当前型号 | 当前型号 |
TPS3809K33DBVR 德州仪器 | 完全替代 | TLV809K33DBZT和TPS3809K33DBVR的区别 |
TLV809K33DBZR 德州仪器 | 完全替代 | TLV809K33DBZT和TLV809K33DBZR的区别 |
TPS3809I50DBVT 德州仪器 | 类似代替 | TLV809K33DBZT和TPS3809I50DBVT的区别 |
