LDO(低压降)线性稳压器,200mA,Texas Instruments
### LDO(低压降)线性稳压器,Texas Instruments
低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
得捷:
IC REG LINEAR 1.8V 200MA SOT23-5
欧时:
Texas Instruments TPS79918DDCT LDO 稳压器, 1.8 V输出, 200mA最大输出, ±1%精确度, 2.7 → 6.5 V输入
立创商城:
TPS79918DDCT
德州仪器TI:
200-mA, low-IQ, low-dropout voltage regulator with low-noise & enable
e络盟:
TEXAS INSTRUMENTS TPS79918DDCT 固定电压稳压器, LDO, 2.7V至6.5V, 100mV压差, 1.8V输出, 200mA输出, TSOT-23-5
艾睿:
Stable voltages are always needed for sensitive systems implement this LDO TPS79918DDCT linear regulator from Texas Instruments. It has an overall accuracy of ±1 %. This voltage regulation device&s;s single output can produce a current up to 0.2 A. By only needing an input voltage of 2.7 V with a maximum of 6.5 V, this is the best way to control the power in your circuit. With a fixed output that has a voltage of 1.8 V, this is power management at its best. Users like the load regulation of 0.002%/mATyp and line regulation of 0.02%/VTyp. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 85 °C. Its polarity is positive.
安富利:
LDO Regulator Pos 1.8V 0.2A 5-Pin SOT T/R
Chip1Stop:
Single Channel LDO Single Output LDO, 200mA, Fixed1.8V, Low Quiescent Current, Low Noise, High PSRR LDO Regulator Pos 1.8V 0.2A 5-Pin TSOT-23 T/R
Verical:
LDO Regulator Pos 1.8V 0.2A 5-Pin TSOT-23 T/R
Newark:
# TEXAS INSTRUMENTS TPS79918DDCT Fixed LDO Voltage Regulator, 2.7V to 6.5V, 100mV Dropout, 1.8Vout, 200mAout, TSOT-23-5
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 1.8V 200mA 5-SOT
输出接口数 1
输出电压 1.8 V
输出电流 200 mA
针脚数 5
耗散功率 500 W
静态电流 0.04 mA
输出电容类型 Ceramic
跌落电压 100 mV
调节输出数 1
输入电压Max 6.5 V
输入电压Min 2.7 V
输出电流Max 0.2 A
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 ±1 %
电源电压Min 2.7 V
输入电压 2.7V ~ 6.5V
安装方式 Surface Mount
引脚数 5

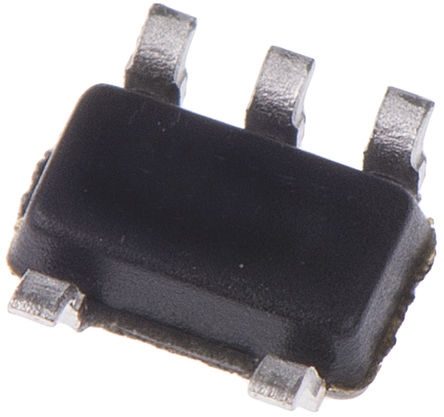

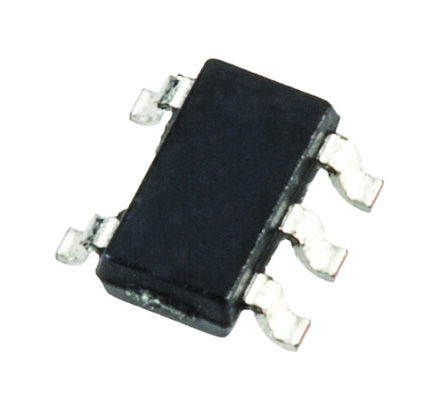

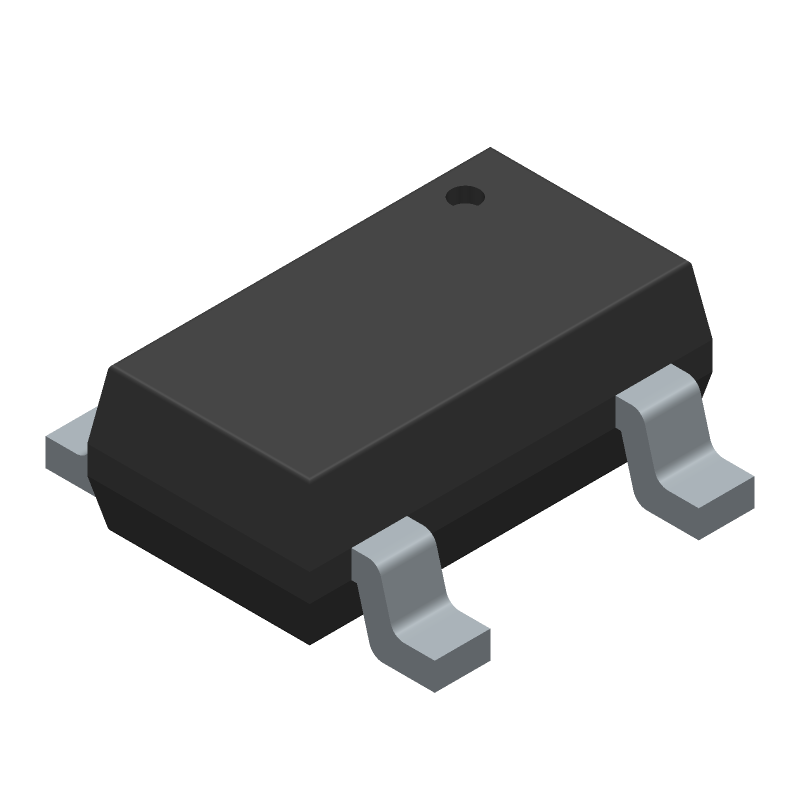

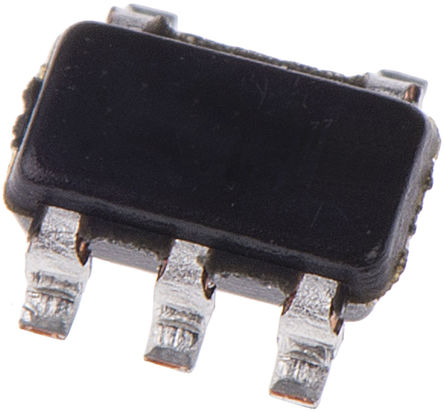

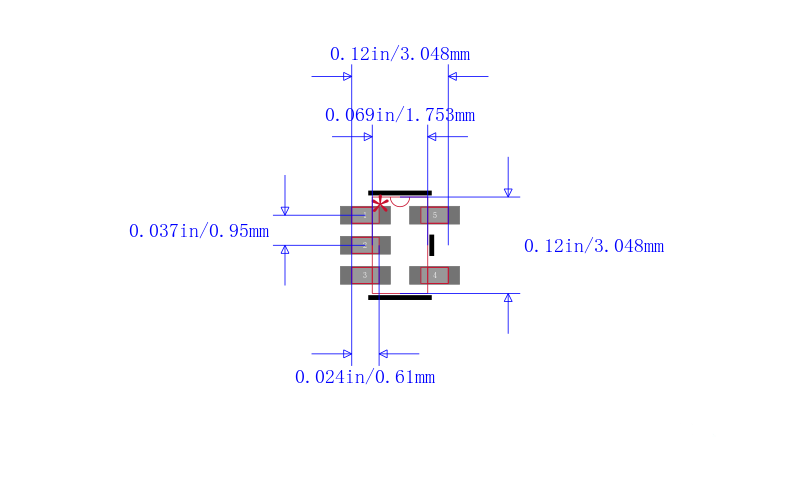

封装 TSOT-23-5
长度 2.9 mm
宽度 1.6 mm
高度 0.87 mm
封装 TSOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS79918DDCT TI 德州仪器 | 当前型号 | 当前型号 |
TLV70033DDCT 德州仪器 | 类似代替 | TPS79918DDCT和TLV70033DDCT的区别 |
TPS79918DDCR 德州仪器 | 类似代替 | TPS79918DDCT和TPS79918DDCR的区别 |
TPS79918DDCTG4 德州仪器 | 类似代替 | TPS79918DDCT和TPS79918DDCTG4的区别 |
