TC1301B-FAAVMFTR

TC1301B-FAAVMFTR LDO电压调整器/稳压电源IC 3V 104mV/0.104V MSOP8 marking/标记 短路保护 过热保护

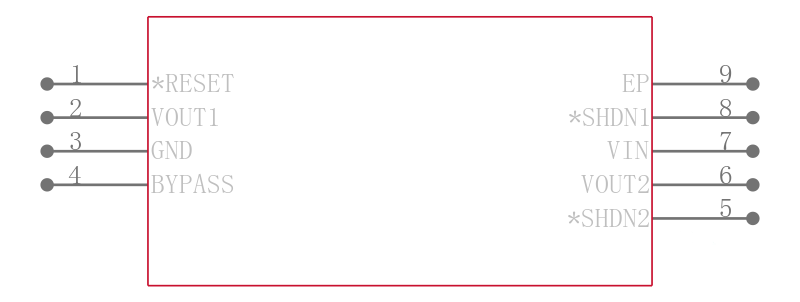

电路数量Number of Regulators| 2 \---|--- 输入电压VINVoltage - Input| 6.5V 输出电压VOUTVoltage - Output| 3V 输出电流IoCurrent - Output| 300mA/0.3A 最大压降VDOVoltage - Dropout| 104mV/0.104V 带使能脚EN/CEON/OFF功能With Enable Pin| 无 No 最大耗散功率PdPower dissipation| Description & Applications| •Dual Output LDO with Microcontroller Reset Monitor Functionality:- VOUT1 = 1.5V to 3.3V @ 300 mA- VOUT2 = 1.5V to 3.3V @ 150 mA- VRESET = 2.20V to 3.20V • Output Voltage and RESET Threshold Voltage • Low Supply Current: 116 µA, Typical • Reference Bypass Input for Low-Noise Operation • Both Output Voltages Stable with a Minimum of 1 µF Ceramic Output Capacitor • Separate Input for RESET Detect Voltage • Separate VOUT1 and VOUT2 SHDN pins • RESET Output Duration: 300 ms. Typical • Power-Saving Shutdown Mode of Operation • Wake-up from SHDN: 5.3 µs. Typical • Small 8-pin DFN and MSOP Package Options • Operating Junction Temperature Range: - -40°C to +125°C • Overtemperature and Overcurrent Protection 描述与应用| •双输出LDO与单片机的复位 监视功能： - VOUT1=1.5V至3.3V @300毫安VOUT2  = 1.5V到3.3V @150毫安VRESET=2.20V到3.20V •输出电压和复位阈值电压 •低电源电流：116μA，典型 •低噪声运行的参考旁路输入 •两个输出电压最低稳定 1μF陶瓷输出电容 •独立的输入复位检测值 •独立VOUT1和VOUT2 SHDN引脚 •RESET输出时间：300毫秒。典型 •省电关机操作模式 •从SHDN唤醒：5.3微秒。典型 •小型8引脚DFN和MSOP封装选项 •工作结温范围： - 40°C至+125°C •过热和过流保护
