LDO(低压降)线性电压调节器,200mA,Texas Instruments### LDO(低压降)线性电压调节器,Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
LDO(低压降)线性稳压器,200mA,Texas Instruments
### LDO(低压降)线性稳压器,Texas Instruments
低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
得捷:
IC REG LINEAR 2.5V 200MA 4DSBGA
立创商城:
TLV70525YFPT
德州仪器TI:
200-mA, high-PSRR, low-IQ, low-dropout voltage regulator with low-noise & enable
欧时:
### LDO(低压降)线性稳压器,200mA,Texas Instruments### LDO(低压降)线性稳压器,Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
艾睿:
This LDO TLV70525YFPT linear regulator developed by Texas Instruments keeps the power stable! This device has a maximum power dissipation of 714 mW. It has an overall accuracy of ±0.5 %. Its typical dropout voltage at current is 0.145@200mA V. This voltage regulation device&s;s single output can produce a current up to 0.2 A. By only needing an input voltage of 2 V with a maximum of 5.5 V, this is the best way to control the power in your circuit. With a fixed output that has a voltage of 2.5 V, this is power management at its best. Operate at a constant current by utilizing the load regulation of 1mVTyp and line regulation of 0.05mVTyp. Its maximum power dissipation is 714 mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. The maximum dropout voltage is 0.25@200mA V. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C.
安富利:
LDO Regulator Pos 2.5V 0.2A 4-Pin DSBGA T/R
Chip1Stop:
LDO Regulator Pos 2.5V 0.2A 4-Pin DSBGA T/R
Verical:
LDO Regulator Pos 2.5V 0.2A 4-Pin DSBGA T/R
DeviceMart:
IC REG LDO 2.5V .2A 4DSBGA
额定功率 714 mW
输出接口数 1
输出电压 2.5 V
输出电流 200 mA
供电电流 55µA ~ 315µA
耗散功率 714 W
静态电流 35 µA
输出电容类型 Ceramic
跌落电压 0.145V @200mA
调节输出数 1
输入电压Max 5.5 V
输入电压Min 2 V
输出电压Min 2.5 V
输出电流Max 200 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 5.5 V
安装方式 Surface Mount
引脚数 4

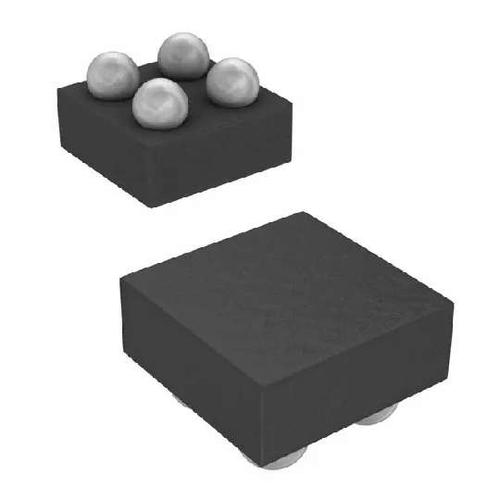

封装 XFBGA-4
长度 0.81 mm
宽度 0.806 mm
高度 0.31 mm
封装 XFBGA-4
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TLV70525YFPT TI 德州仪器 | 当前型号 | 当前型号 |
TLV70525YFPR 德州仪器 | 类似代替 | TLV70525YFPT和TLV70525YFPR的区别 |
BU25TD3WG-TR 罗姆半导体 | 功能相似 | TLV70525YFPT和BU25TD3WG-TR的区别 |
ADP151ACBZ-2.5-R7 亚德诺 | 功能相似 | TLV70525YFPT和ADP151ACBZ-2.5-R7的区别 |
