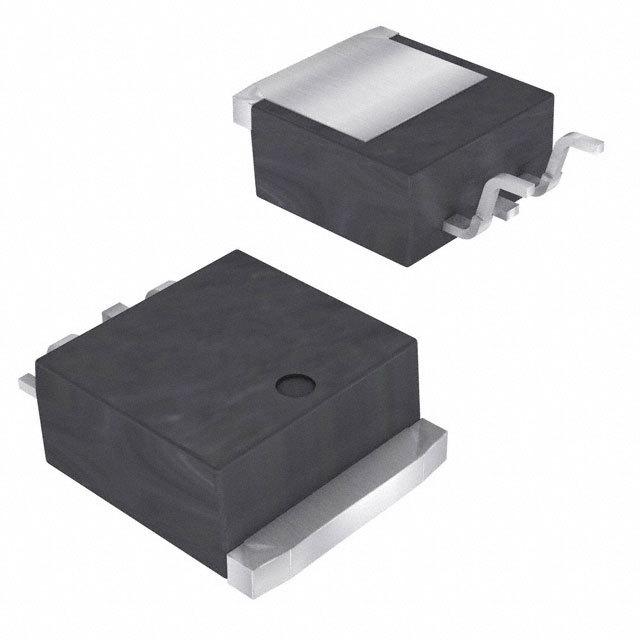

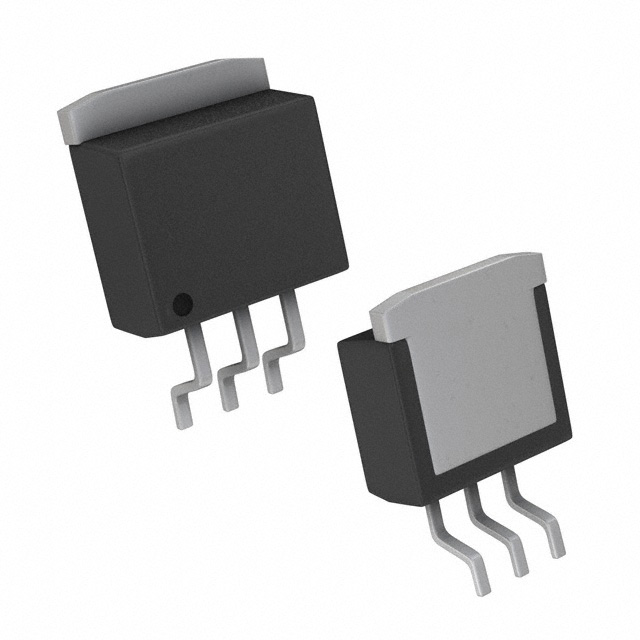

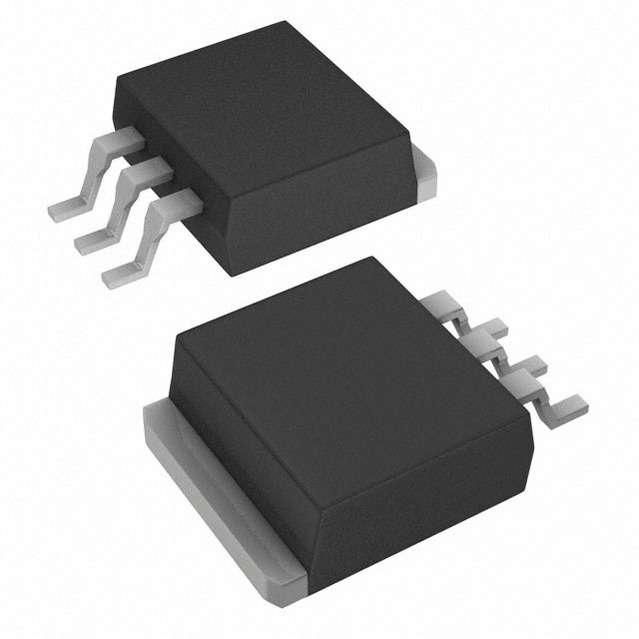

TL750L05CKTTR

低压差稳压器 LOW-DROPOUT VOLTAGE REGULATORS

PMIC - 稳压器 - 线性 正 固定 输出 150mA DDPAK/TO-263-3

得捷:
IC REG LIN 5V 150MA DDPAK/TO263

立创商城:
TL750L05CKTTR

德州仪器TI:
150-mA, 26-V, low-dropout voltage regulator

贸泽:
低压差稳压器 Single Output LDO 150mA

艾睿:
If you need to maintain a steady voltage on your circuit, then this LDO TL750L05CKTTR linear regulator from Texas Instruments is perfect for you! It has an overall accuracy of ±4 %. This voltage regulation device&s;s single output can produce a current up to 0.15 A. Use this part at voltages between 6 V and 26 V. With a fixed output that has a voltage of 5 V, this is power management at its best. At a load regulation of 50mV and line regulation of 30mV your circuit is capable of maintaining a constant voltage level at your output. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This voltage regulation device has a minimum operating temperature of 0 °C and a maximum of 125 °C. The maximum dropout voltage is 0.2@10mA|0.6@150mA V. Its polarity is positive.

安富利:
LDO Regulator Pos 5V 0.15A 4-Pin3+Tab TO-263 T/R

Chip1Stop:
Single Channel LDO Single Output LDO, 150mA, Fixed5.0V, Low Quiescent Current, 60V Load Dump Protection LDO Regulator Pos 5V 0.15A 4-Pin3+Tab TO-263 T/R

Verical:
LDO Regulator Pos 5V 0.15A 4-Pin3+Tab TO-263 T/R
