250mA,低静态电流,超低噪声,高PSRR低压降线性稳压器 250mA, Low Quiescent Current, Ultra-Low Noise, High PSRR Low-Dropout Linear Regulator
PMIC - 稳压器 - 线性 正 固定 输出 250mA 6-WSON(2x2)
立创商城:
TPS73418DRVR
德州仪器TI:
250-mA, low-IQ, low-dropout voltage regulator with enable
得捷:
IC REG LINEAR 1.8V 250MA 6WSON
贸泽:
低压差稳压器 Sgl Out,250mA,Fixed Lo Quies Crnt
艾睿:
Use the LDO TPS73418DRVR linear regulator from Texas Instruments to maintain a constant output voltage. Its typical dropout voltage at current is 0.125@250mA V. This device has a maximum power dissipation of 1540 mW. It has an overall accuracy of ±1 %. This voltage regulation device&s;s single output can produce a current up to 0.25 A. With a small input voltage of 2.7 V and a max of 6.5 V, this will supply sufficient power to your circuit. With a fixed output that has a voltage of 1.8 V, this is power management at its best. Using a load regulation of 0.005%/mATyp and line regulation of 0.02%/VTyp is needed for a programmable DC power supply. Its maximum power dissipation is 1540 mW. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. The maximum dropout voltage is 0.219@250mA V. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C.
安富利:
LDO Regulator Pos 1.8V 0.25A 6-Pin WSON EP T/R
Verical:
LDO Regulator Pos 1.8V 0.25A 6-Pin WSON EP T/R
输出接口数 1
输出电压 1.8 V
输出电流 250 mA
耗散功率 1.54 W
静态电流 44.0 µA
输出电容类型 Ceramic
跌落电压 0.125V @250mA
调节输出数 1
输入电压Max 6.5 V
输入电压Min 2.7 V
输出电流Max 0.25 A
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 1540 mW
精度 ±1 %
输入电压 2.7V ~ 6.5V
安装方式 Surface Mount
引脚数 6

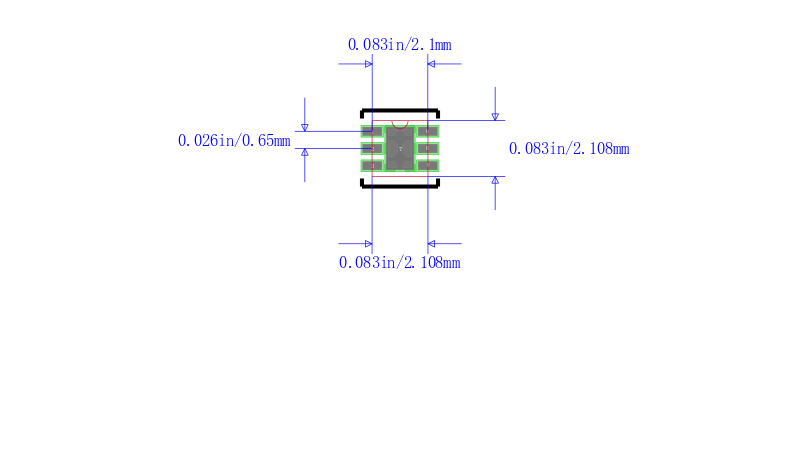

封装 WDFN-6
长度 2 mm
宽度 2 mm
高度 0.75 mm
封装 WDFN-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS73418DRVR TI 德州仪器 | 当前型号 | 当前型号 |
TPS73418DRVT 德州仪器 | 类似代替 | TPS73418DRVR和TPS73418DRVT的区别 |
