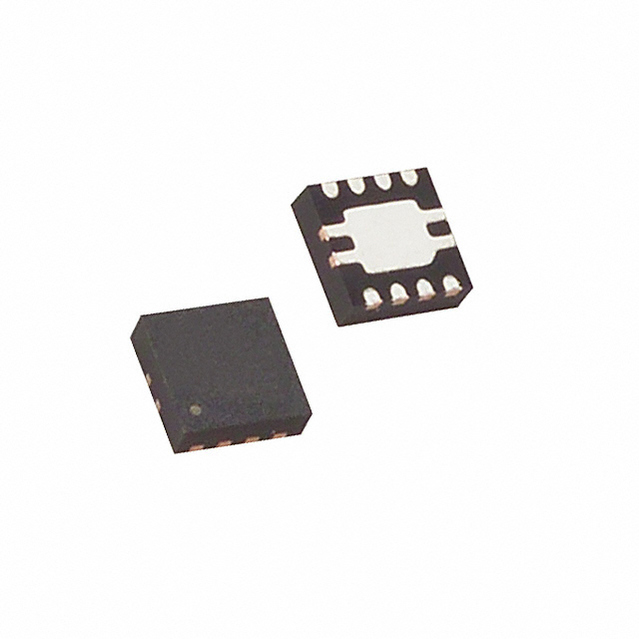

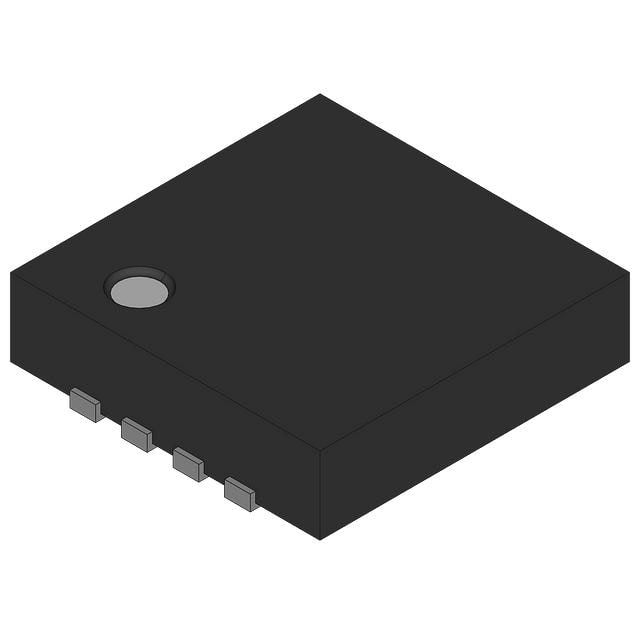

可调,固定低压差稳压器 ADJUSTABLE AND FIXED LOW-DROPOUT VOLTAGE REGULATOR
PMIC - 稳压器 - 线性 正 固定 输出 800mA 8-SON(4x4)
得捷:
IC REG LINEAR 5V 800MA 8SON
立创商城:
TLV1117-50CDRJR
德州仪器TI:
800-mA, 15-V, linear voltage regulator
贸泽:
LDO Voltage Regulators Fixed LDO Volt Reg
艾睿:
Never worry about components not turning off and on due to lack of voltage with this LDO TLV1117-50CDRJR linear regulator from Texas Instruments. Its typical dropout voltage at current is 1.1@100mA|1.15@500mA|1.2@800mA V. This voltage regulation device&s;s single output can produce a current up to 0.8 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 6.4 V that does not exceed 15 V. With a fixed output that has a voltage of 5 V, this is power management at its best. Using a load regulation of 0.4% and line regulation of 0.2% is needed for a programmable DC power supply. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. The maximum dropout voltage is 1.2@100mA|1.25@500mA|1.3@800mA V. Its polarity is positive. This voltage regulation device has a minimum operating temperature of 0 °C and a maximum of 125 °C.
安富利:
LDO Regulator Pos 5V 0.8A 8-Pin WSON EP T/R
Chip1Stop:
Standard Voltage Regulator Single Output LDO, 800mA, Fixed 5.0V, Internal Current limit, Thermal Overload Protection LDO Regulator Pos 5V 0.8A 8-Pin WSON EP T/R
Verical:
LDO Regulator Pos 5V 0.8A 8-Pin WSON EP T/R
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 5V 800mA 8-SON Exposed Pad 4x4
输出接口数 1
输入电压DC 15.0V max
输出电压 5 V
输出电流 800 mA
静态电流 10 mA
输出电容类型 Tantalum
跌落电压 1.2 V
调节输出数 1
输入电压Max 15 V
输入电压Min 6.4 V
输出电流Max 0.8 A
工作温度Max 125 ℃
工作温度Min 0 ℃
精度 2.5 %
输入电压 6.4V ~ 15V
安装方式 Surface Mount
引脚数 8
封装 WDFN-8
长度 4 mm
宽度 4 mm
高度 0.67 mm
封装 WDFN-8
工作温度 0℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TLV1117-50CDRJR TI 德州仪器 | 当前型号 | 当前型号 |
TLV1117-50CDRJRG4 德州仪器 | 类似代替 | TLV1117-50CDRJR和TLV1117-50CDRJRG4的区别 |
