200mA,低静态电流,超低噪声,高PSRR低压降线性稳压器 200mA, Low Quiescent Current, Ultra-Low Noise, High PSRR Low Dropout Linear Regulator
PMIC - 稳压器 - 线性 正 固定 1 输出 200mA 5-DSBGA(1x1.37)
得捷:
IC REG LINEAR 1.5V 200MA 5DSBGA
立创商城:
TPS79915YZUT
德州仪器TI:
200-mA, low-IQ, low-dropout voltage regulator with low-noise & enable
贸泽:
LDO Voltage Regulators 200mA Fixed1.3V
艾睿:
Keep the energy stable for every system by using this LDO TPS79915YZUT linear regulator by Texas Instruments. It has an overall accuracy of ±1 %. This voltage regulation device&s;s single output can produce a current up to 0.2 A. Using the part will provide the power your application needs by requiring a voltage only of 2.7 V and not exceeding a voltage of 6.5 V. With a fixed output that has a voltage of 1.5 V, this is power management at its best. To produce a constant current at your output, supply your circuit with a load regulation of 0.002%/mATyp and line regulation of 0.02%/VTyp. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 85 °C.
安富利:
LDO Regulator Pos 1.5V 0.2A 5-Pin DSBGA T/R
Chip1Stop:
Single Channel LDO Single Output LDO, 200mA, Fixed1.5V, Low Quiescent Current, Low Noise, High PSRR LDO Regulator Pos 1.5V 0.2A 5-Pin DSBGA T/R
Verical:
LDO Regulator Pos 1.5V 0.2A 5-Pin DSBGA T/R
Newark:
# TEXAS INSTRUMENTS TPS79915YZUT LDO Voltage Regulator, Fixed, 100 mV drop, 200 mA out
输出接口数 1
输出电压 1.5 V
输出电流 200 mA
耗散功率 530 W
静态电流 0.04 mA
输出电容类型 Ceramic
跌落电压 100 mV
调节输出数 1
输入电压Max 6.5 V
输入电压Min 2.7 V
输出电流Max 0.2 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1 %
输入电压 2.7V ~ 6.5V
安装方式 Surface Mount
引脚数 5

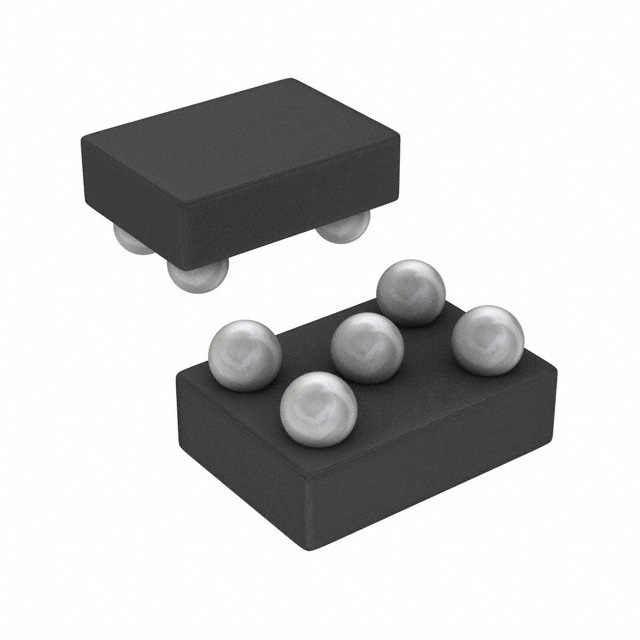

封装 UFBGA-5
长度 1.57 mm
宽度 1.2 mm
高度 0.55 mm
封装 UFBGA-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS79915YZUT TI 德州仪器 | 当前型号 | 当前型号 |
TPS79915YZUR 德州仪器 | 类似代替 | TPS79915YZUT和TPS79915YZUR的区别 |
