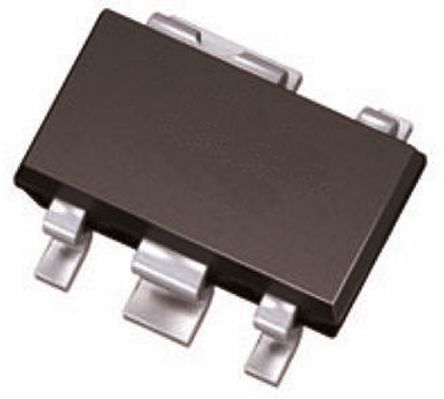

INFINEON TLE4295GV50HTSA1 固定电压稳压器, LDO, 5.5V至45V, 250mV压差, 5V输出, 30mA输出, SCT-595-5
LDO 稳压器,
Infineon 的一系列固定电压 LDO(低压降)线性稳压器
得捷:
IC REG LINEAR 5V 30MA SCT595-5
欧时:
Infineon TLE4295GV50HTSA1 LDO 稳压器, 5 V输出, 30mA最大输出, 4%精确度, 3.5 → 45 V输入, 5引脚
立创商城:
正 Vin=45V Vout=5V 30mA 60dB@100Hz
贸泽:
LDO Voltage Regulators LW Drop VOLT REGLTR 5V 200mA
e络盟:
固定电压稳压器, LDO, 5.5V至45V, 250mV压差, 5V输出, 30mA输出, SCT-595-5
艾睿:
If you need to maintain a steady voltage on your circuit, then this LDO TLE4295GV50HTSA1 linear regulator from Infineon Technologies is perfect for you! Its typical dropout voltage at current is 0.25@20mA V. It has an overall accuracy of ±4 %. This voltage regulation device&s;s single output can produce a current up to 0.03 A. Use this part at voltages between 3.5 V and 45 V. With a fixed output that has a voltage of 5 V, this is power management at its best. By operating at a load regulation of 25mV and line regulation of 25mV you can provide a constant voltage at your output. This voltage regulation device has an operating temperature range of -40 °C to 150 °C. The maximum dropout voltage is 0.4@20mA V. Its polarity is positive.
Chip1Stop:
LDO Regulator Pos 5V 0.03A Automotive 5-Pin3+2Tab SCT-595
Verical:
LDO Regulator Pos 5V 0.03A Automotive 5-Pin3+2Tab SCT-595
Newark:
# INFINEON TLE4295GV50HTSA1 Fixed LDO Voltage Regulator, 5.5V to 45V, 250mV Dropout, 5Vout, 30mAout, SCT-595-5
输出接口数 1
输出电压 5 V
输出电流 30 mA
针脚数 5
静态电流 2 mA
跌落电压 250 mV
输入电压Max 45 V
输入电压Min 5.5 V
输出电流Max 0.03 A
工作温度Max 150 ℃
工作温度Min -40 ℃
精度 ±4 %
输入电压 45 V
安装方式 Surface Mount
引脚数 5
封装 SCT-595-5
长度 2.9 mm
宽度 1.6 mm
高度 1.1 mm
封装 SCT-595-5
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 车用, Automotive General, Power Management, Automotive, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
