低噪声,高带宽PSRR低压降150mA线性稳压器 Low Noise, High-Bandwidth PSRR Low-Dropout 150mA Linear Regulator
PMIC - 稳压器 - 线性 正 固定 1 输出 150mA SC-70-5
立创商城:
TPS71715DCKR
德州仪器TI:
150-mA, high-PSRR, low-IQ, low-dropout voltage regulator with enable
得捷:
IC REG LINEAR 1.5V 150MA SC70-5
贸泽:
低压差稳压器 LN High-BW PSRR 150mA
艾睿:
Never worry about components seeing unstable voltages again by implementing this LDO TPS71715DCKR linear regulator manufactured by Texas Instruments. Its typical dropout voltage at current is 0.17@150mA V. It has an overall accuracy of ±3 %. This device has a maximum power dissipation of 320 mW. This voltage regulation device&s;s single output can produce a current up to 0.15 A. With a small input voltage of 2.5 V and a max of 6.5 V, this will supply sufficient power to your circuit. With a fixed output that has a voltage of 1.5 V, this is power management at its best. Using a load regulation of 120uV/mATyp and line regulation of 125uV/VTyp is needed for a programmable DC power supply. Its maximum power dissipation is 320 mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive.
安富利:
LDO Regulator Pos 1.5V 0.15A 5-Pin SC-70 T/R
Chip1Stop:
Single Channel LDO Single Output LDO, 150mA, Fixed 1.5V, Low Noise, High PSRR LDO Regulator Pos 1.5V 0.15A 5-Pin SC-70 T/R
Verical:
LDO Regulator Pos 1.5V 0.15A 5-Pin SC-70 T/R
Newark:
# TEXAS INSTRUMENTS TPS71715DCKR Fixed LDO Voltage Regulator, 2.5V to 6.5V, 170mV Dropout, 1.5Vout, 150mAout, SC-70-5
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 1.5V 150mA SC-70-5
输出接口数 1
输入电压DC 6.50V max
输出电压 1.5 V
输出电流 150 mA
耗散功率 0.32 W
静态电流 45.0 µA
输出电容类型 Ceramic
跌落电压 0.17V @150mA
调节输出数 1
输入电压Max 6.5 V
输入电压Min 2.5 V
输出电压Min 1.5 V
输出电流Max 0.15 A
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 320 mW
精度 3 %
输入电压 2.5V ~ 6.5V
安装方式 Surface Mount
引脚数 5

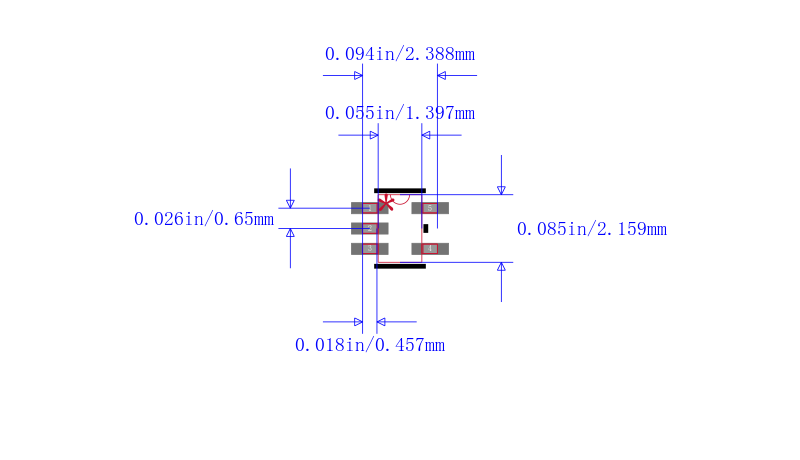

封装 SC-70-5
长度 2 mm
宽度 1.25 mm
高度 0.9 mm
封装 SC-70-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS71715DCKR TI 德州仪器 | 当前型号 | 当前型号 |
TPS71715DCKT 德州仪器 | 类似代替 | TPS71715DCKR和TPS71715DCKT的区别 |
TPS71715DCKTG4 德州仪器 | 类似代替 | TPS71715DCKR和TPS71715DCKTG4的区别 |
TPS71715DCKRG4 德州仪器 | 类似代替 | TPS71715DCKR和TPS71715DCKRG4的区别 |
