Infineon TLE4286 系列 TLE4286GHTSA1 线性稳压器, 6.2 → 42 V输入, 5 V输出, 4%精确度, 15mA最大输出
线性电压调节器,
欧时:
Infineon TLE4286 系列 TLE4286GHTSA1 线性稳压器, 6.2 → 42 V输入, 5 V输出, 4%精确度, 15mA最大输出
立创商城:
正 Vin=42V Vout=5V 15mA 60dB@100Hz
得捷:
IC REG LINEAR 5V 15MA SCT595-5
e络盟:
固定LDO稳压器, 6 V至42 V, 800 mV压降, 5 V/70 mA输出, SCT-595-5
艾睿:
Use this LDO TLE4286GHTSA1 linear regulator from Infineon Technologies to vary your voltage levels to your desired level. It has an overall accuracy of ±4 %. Its typical dropout voltage at current is 0.8@10mA V. This voltage regulation device&s;s single output can produce a current up to 0.07 A. It only needs a voltage of at least 6 V while not exceeding 42 V to effectively power your circuit. With a fixed output that has a voltage of 5 V, this is power management at its best. To produce a constant current at your output, supply your circuit with a load regulation of 10mV and line regulation of 10mV. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 150 °C. The maximum dropout voltage is 1.1@10mA V.
安富利:
Linear Voltage Regulator IC Positive Fixed Output 5V 15mA PG-SCT595-5
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 5V 15mA PG-SCT595-5
输出接口数 1
输出电压 5 V
输出电流 15 mA
针脚数 5
静态电流 100 µA
跌落电压 0.8V @10mA
输入电压Max 42 V
输入电压Min 6 V
输出电流Max 15 mA
工作温度Max 150 ℃
工作温度Min -40 ℃
精度 ±4 %
输入电压 6V ~ 42V
安装方式 Surface Mount
引脚数 5

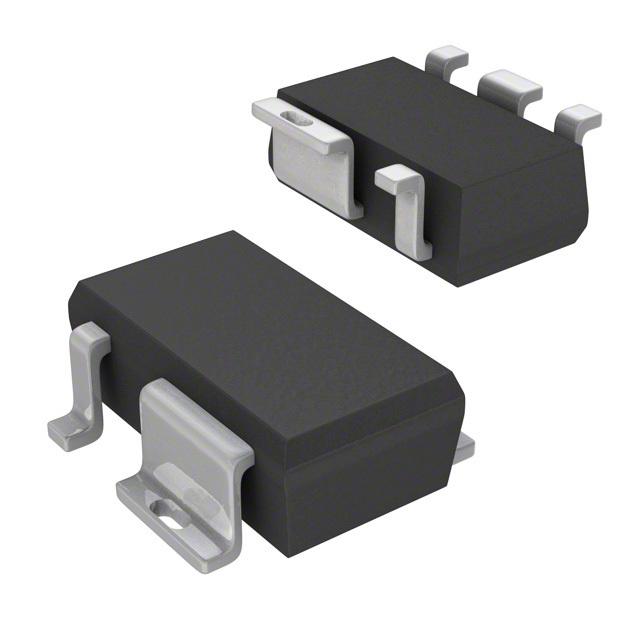

封装 SCT-595-5
长度 2.9 mm
宽度 1.6 mm
高度 1 mm
封装 SCT-595-5
工作温度 -40℃ ~ 150℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TLE4286GHTSA1 Infineon 英飞凌 | 当前型号 | 当前型号 |
TLE4286GNTSA1 英飞凌 | 完全替代 | TLE4286GHTSA1和TLE4286GNTSA1的区别 |
