TEXAS INSTRUMENTS TPS78225DDCT 固定电压稳压器, LDO, 2.2V至5.5V, 130mV压差, 2.5V输出, 150mA输出, TSOT-23-5
LDO(低压降)线性稳压器,150mA,2.0V 至 2.9V,Texas Instruments
### LDO(低压降)线性稳压器,Texas Instruments
低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
得捷:
IC REG LINEAR 2.5V 150MA SOT23-5
欧时:
Texas Instruments TPS78225DDCT LDO 稳压器, 2.5 V输出, 150mA最大输出, ±1%精确度, 2.2 → 5.5 V输入
立创商城:
TPS78225DDCT
德州仪器TI:
150-mA, nano-IQ, low-dropout voltage regulator with enable from -40°C to +125°C
贸泽:
低压差稳压器 Sgl Fixed Output LDO 150mA
e络盟:
TEXAS INSTRUMENTS TPS78225DDCT 固定电压稳压器, LDO, 2.2V至5.5V, 130mV压差, 2.5V输出, 150mA输出, TSOT-23-5
艾睿:
Keep the energy stable for every system by using this LDO TPS78225DDCT linear regulator by Texas Instruments. It has an overall accuracy of ±1 %. This device has a maximum power dissipation of 500 mW. Its typical dropout voltage at current is 0.13@150mA V. This voltage regulation device&s;s single output can produce a current up to 0.15 A. It only needs a voltage of at least 2.2 V while not exceeding 5.5 V to effectively power your circuit. With a fixed output that has a voltage of 2.5 V, this is power management at its best. By operating at a load regulation of 2%Typ and line regulation of 1%Typ you can provide a constant voltage at your output. Its maximum power dissipation is 500 mW. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. The maximum dropout voltage is 0.25@150mA V. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. Its polarity is positive.
安富利:
LDO Regulator Pos 2.5V 0.15A 5-Pin SOT T/R
Chip1Stop:
Single Channel LDO Single Fixed Output LDO, 150mA, 0.5μA Quiescent Current LDO Regulator Pos 2.5V 0.15A 5-Pin TSOT-23 T/R
Verical:
LDO Regulator Pos 2.5V 0.15A 5-Pin TSOT-23 T/R
Newark:
# TEXAS INSTRUMENTS TPS78225DDCT Fixed LDO Voltage Regulator, 2.2V to 5.5V, 130mV Dropout, 2.5Vout, 150mAout, TSOT-23-5
DeviceMart:
IC REG LDO 2.5V .15A 5-SOT
额定功率 0.5 W
输出接口数 1
输出电压 2.5 V
输出电流 150 mA
供电电流 1.3µA ~ 8µA
针脚数 5
耗散功率 0.5 W
静态电流 0.0005 mA
输出电容类型 Ceramic
跌落电压 130 mV
调节输出数 1
输入电压Max 5.5 V
输入电压Min 2.2 V
输出电压Min 2.5 V
输出电流Max 150 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 500 mW
精度 2 %
输入电压 ≤5.5 V
安装方式 Surface Mount
引脚数 5

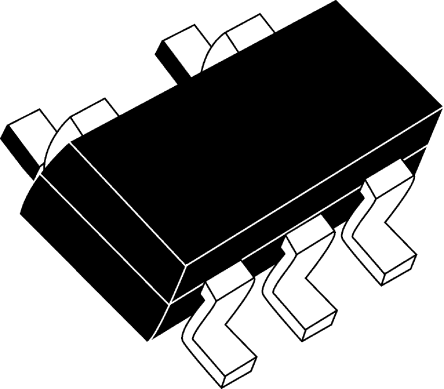

封装 TSOT-23-5
长度 2.9 mm
宽度 1.6 mm
高度 0.87 mm
封装 TSOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS78225DDCT TI 德州仪器 | 当前型号 | 当前型号 |
TPS78225DDCR 德州仪器 | 类似代替 | TPS78225DDCT和TPS78225DDCR的区别 |
TPS78225DDCTG4 德州仪器 | 类似代替 | TPS78225DDCT和TPS78225DDCTG4的区别 |
TPS78225DDCRG4 德州仪器 | 类似代替 | TPS78225DDCT和TPS78225DDCRG4的区别 |
