TEXAS INSTRUMENTS TLV70436DBVT 固定电压稳压器, LDO, 2.5V至24V, 850mV压差, 3.6V输出, 150mA输出, SOT-23-5
LDO(低压降)线性稳压器,150mA,3.0V 至 3.9V,Texas Instruments
得捷:
IC REG LINEAR 3.6V 150MA SOT23-5
立创商城:
TLV70436DBVT
德州仪器TI:
150-mA, 24-V, ultra-low-IQ, low-dropout voltage regulator
欧时:
### LDO(低压降)线性稳压器,150mA,3.0V 至 3.9V,Texas Instruments### LDO(低压降)线性稳压器,Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
e络盟:
TEXAS INSTRUMENTS TLV70436DBVT 固定电压稳压器, LDO, 2.5V至24V, 850mV压差, 3.6V输出, 150mA输出, SOT-23-5
艾睿:
Use this LDO TLV70436DBVT linear regulator from Texas Instruments to vary your voltage levels to your desired level. This device has a maximum power dissipation of 470 mW. Its typical dropout voltage at current is 0.075@10mA|0.4@50mA|0.85@0.1A V. It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 0.15 A. Use this part at voltages between 2.5 V and 24 V. With an adjustable output that has a voltage of 1.2 to 5 V, this is power management at its best. Operate at a constant current by utilizing the load regulation of 75mV and line regulation of 50mV. Its maximum power dissipation is 470 mW. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. Its polarity is positive. The maximum dropout voltage is 1.1@100mA V. This voltage regulation device has an operating temperature range of -40 °C to 125 °C.
安富利:
LDO Regulator Pos 1.2V to 5V 0.15A 5-Pin SOT-23 T/R
Chip1Stop:
LDO Regulator Pos 3.6V 0.15A Automotive 5-Pin SOT-23 T/R
Verical:
LDO Regulator Pos 1.2V to 5V 0.15A 5-Pin SOT-23 T/R
Newark:
# TEXAS INSTRUMENTS TLV70436DBVT Fixed LDO Voltage Regulator, 2.5V to 24V, 850mV Dropout, 3.6Vout, 150mAout, SOT-23-5
额定功率 0.47 W
输出接口数 1
输出电压 3.6 V
输出电流 150 mA
针脚数 5
耗散功率 470 W
静态电流 3.2 µA
输出电容类型 Ceramic
跌落电压 850 mV
调节输出数 1
输入电压Max 24 V
输入电压Min 2.5 V
输出电流Max 150 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 ≤24 V
安装方式 Surface Mount
引脚数 5

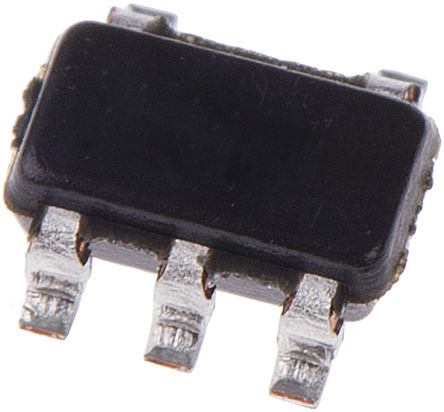

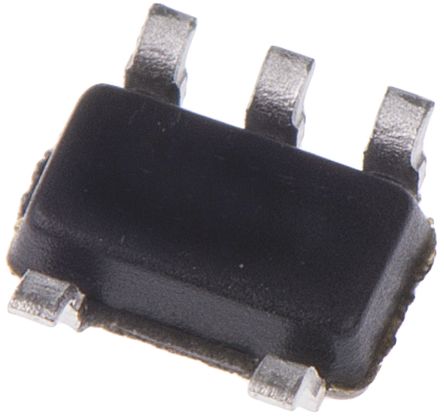

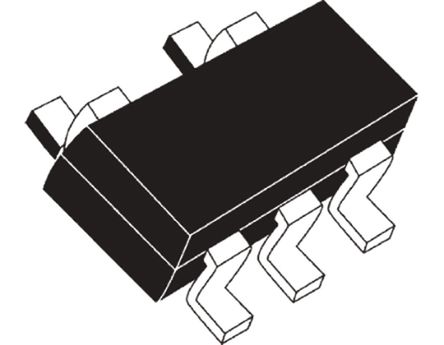

封装 SOT-23-5
长度 3.05 mm
宽度 1.75 mm
高度 1.3 mm
封装 SOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TLV70436DBVT TI 德州仪器 | 当前型号 | 当前型号 |
TLV70436DBVR 德州仪器 | 类似代替 | TLV70436DBVT和TLV70436DBVR的区别 |
