低电压可调节精密并联稳压器 LOW-VOLTAGE ADJUSTABLE PRECISION SHUNT REGULATORS
分流器 电压基准 IC ±0.5% SOT-23-3
立创商城:
并联 15mA
得捷:
IC VREF SHUNT ADJ 0.5% SOT23-3
德州仪器TI:
Automotive, low-voltage adjustable precision shunt regulator
贸泽:
参考电压 Auto Cat Low-Vltg Adj Prec Shunt Reg
艾睿:
Even in the event of large power supply variations, this TLV431BQDBZRQ1 voltage reference power management device from Texas Instruments can produce and maintain a precise DC voltage. This will operate at a maximum voltage of 7 V, making it easy to control the power in your circuit. With an output that has a voltage of 1.24 to 6 V, this is power management at its best. It has an initial accuracy of 0.5%. This voltage reference circuit supports shunt topology. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This voltage reference circuit has an operating temperature range of -40 °C to 125 °C.
安富利:
V-Ref Adjustable 1.24V to 6V 15mA 3-Pin SOT-23 T/R
Chip1Stop:
V-Ref Adjustable 1.24V to 6V 15mA Automotive 3-Pin SOT-23 T/R
Verical:
V-Ref Adjustable 1.24V to 6V 15mA Automotive 3-Pin SOT-23 T/R
力源芯城:
汽车类低压可调节精密并联稳压器
容差 ±0.5 %
输出电压 1.24V ~ 6V
输出电流 15 mA
通道数 1
输入电压Max 7 V
输出电压Max 6 V
输出电压Min 1.24 V
输出电流Max 15 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 0.5 %
输入电压 7 V
安装方式 Surface Mount
引脚数 3

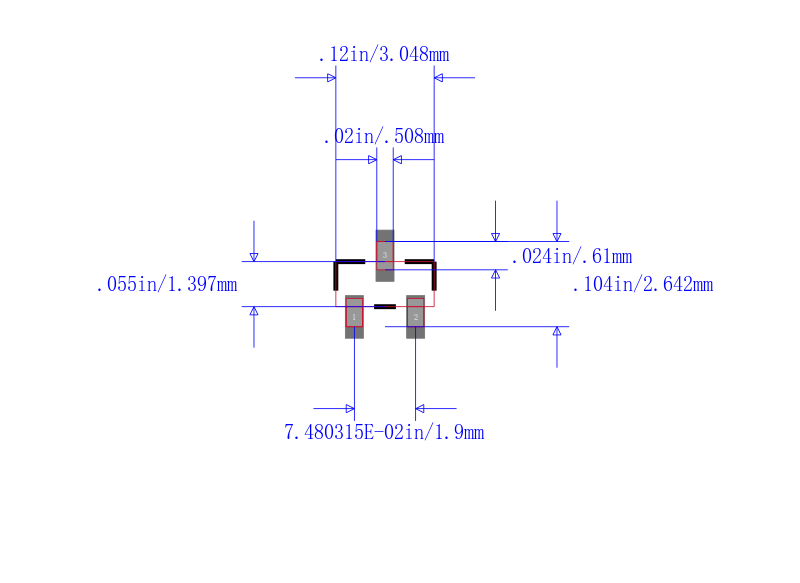

封装 SOT-23-3
长度 2.92 mm
宽度 1.3 mm
高度 1 mm
封装 SOT-23-3
工作温度 -40℃ ~ 125℃
温度系数 ±161 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TLV431BQDBZRQ1 TI 德州仪器 | 当前型号 | 当前型号 |
TLV431AIDBZR 德州仪器 | 类似代替 | TLV431BQDBZRQ1和TLV431AIDBZR的区别 |
TLV431BIDBZR 德州仪器 | 类似代替 | TLV431BQDBZRQ1和TLV431BIDBZR的区别 |
TLV431BQDBZT 德州仪器 | 类似代替 | TLV431BQDBZRQ1和TLV431BQDBZT的区别 |
