200mA,低静态电流,超低噪声,高PSRR低压降线性稳压器 200mA, Low Quiescent Current, Ultra-Low Noise, High PSRR Low Dropout Linear Regulator
PMIC - 稳压器 - 线性 正 固定 1 输出 200mA 5-DSBGA(1x1.37)
立创商城:
TPS79915YZUR
德州仪器TI:
200-mA, low-IQ, low-dropout voltage regulator with low-noise & enable
得捷:
IC REG LINEAR 1.5V 200MA 5DSBGA
贸泽:
低压差稳压器 200mA Fixed1.3V
艾睿:
Use the LDO TPS79915YZUR linear regulator from Texas Instruments to maintain a constant output voltage. It has an overall accuracy of ±1 %. This voltage regulation device&s;s single output can produce a current up to 0.2 A. This will operate at a minimum voltage of 2.7 V and a maximum voltage of 6.5 V, making it easy to control the power in your circuit. With a fixed output that has a voltage of 1.5 V, this is power management at its best. Operate at a constant current by utilizing the load regulation of 0.002%/mATyp and line regulation of 0.02%/VTyp. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 85 °C. Its polarity is positive.
安富利:
LDO Regulator Pos 1.5V 0.2A 5-Pin DSBGA T/R
Chip1Stop:
Single Channel LDO Single Output LDO, 200mA, Fixed1.5V, Low Quiescent Current, Low Noise, High PSRR LDO Regulator Pos 1.5V 0.2A 5-Pin DSBGA T/R
Newark:
# TEXAS INSTRUMENTS TPS79915YZUR LDO Voltage Regulator, Fixed, 100 mV drop, 200 mA out
Win Source:
IC REG LDO 1.5V 0.2A 5DSBGA
输出接口数 1
输入电压DC 6.50V max
输出电压 1.5 V
输出电流 200 mA
耗散功率 0.53 W
静态电流 40.0 µA
输出电容类型 Ceramic
跌落电压 100 mV
调节输出数 1
输入电压Max 6.5 V
输入电压Min 2.7 V
输出电流Max 0.2 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1 %
输入电压 2.7V ~ 6.5V
安装方式 Surface Mount
引脚数 5

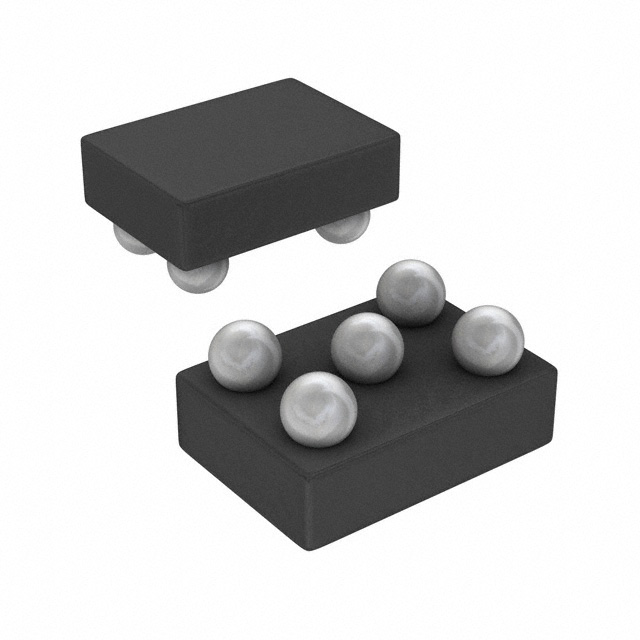

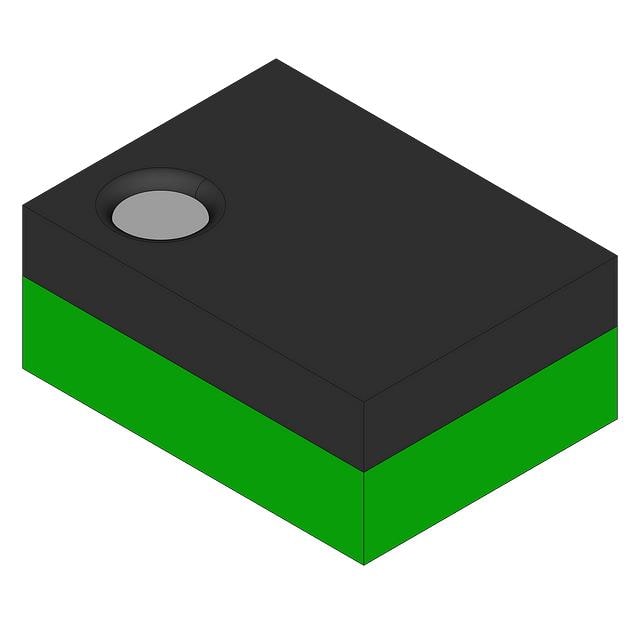

封装 DSBGA-5
长度 1.57 mm
宽度 1.2 mm
高度 0.55 mm
封装 DSBGA-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS79915YZUR TI 德州仪器 | 当前型号 | 当前型号 |
TPS79915YZUT 德州仪器 | 类似代替 | TPS79915YZUR和TPS79915YZUT的区别 |
