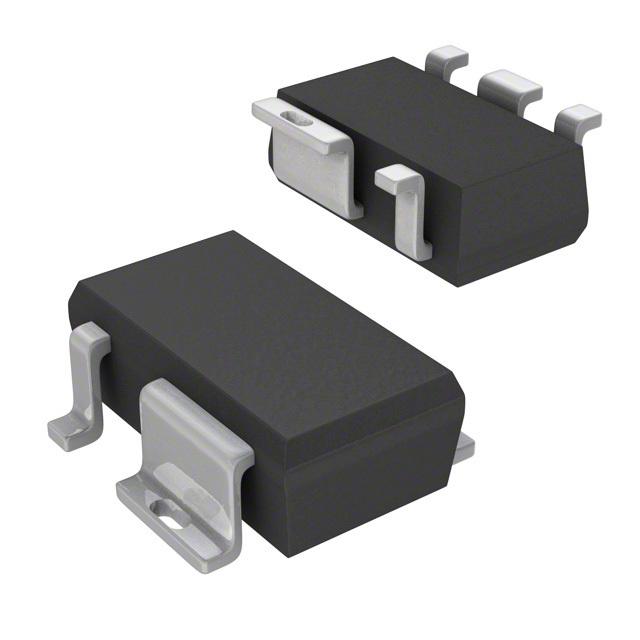

INFINEON TLE42502GHTSA1 电压稳压器, LDO, 可调, 4V至40V输入, 100mV压差, 2.5V至40V/50mA输出, SMD-5
LDO 跟踪稳压器,
得捷:
IC REG LIN POS ADJ 50MA SCT595-5
欧时:
Infineon TLE42502GHTSA1 LDO 跟踪稳压器, 跟踪输出, 50mA最大输出, 0.5%精确度, 4 → 40 V输入
贸泽:
低压差稳压器 LDO Linear Vltg Tracker 4-45V 50 mA
艾睿:
Say goodbye to unstable voltages with this LDO TLE42502GHTSA1 linear regulator from Infineon Technologies. Its typical dropout voltage at current is 0.1@10mA V. This voltage regulation device&s;s single output can produce a current up to 0.05 A. Use this part at voltages between 4 V and 40 V. With an adjustable output that has a voltage of -1 to 40 V, this is power management at its best. At a load regulation of 15mV and line regulation of 10mV a constant current can be produced at the output of your circuit. Its polarity is negative and positive|positive. This voltage regulation device has an operating temperature range of -40 °C to 150 °C. The maximum dropout voltage is 0.3@10mA V.
Chip1Stop:
LDO Regulator Neg/Pos -1V to 40V 0.05A Automotive 5-Pin3+2Tab SCT-595
Verical:
LDO Regulator Neg/Pos -1V to 40V 0.05A Automotive 5-Pin SCT-595 T/R
Newark:
IC, ADJ LDO REG, 40V, 50MA, SCT595-5
Win Source:
Linear Voltage Regulator IC Positive Adjustable 1 Output Tracking 50mA PG-SCT595-5
输出接口数 1
输出电流 50 mA
针脚数 5
静态电流 200 µA
跌落电压 100 mV
输入电压Max 40 V
输入电压Min 4 V
输出电压Max 40 V
输出电压Min 2.5 V
输出电流Max 0.05 A
工作温度Max 150 ℃
工作温度Min -40 ℃
精度 ±5 %
输入电压 4V ~ 40V
安装方式 Surface Mount
引脚数 5
封装 SCT-595-5
长度 2.9 mm
宽度 1.6 mm
高度 1.1 mm
封装 SCT-595-5
工作温度 -40℃ ~ 150℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
制造应用 工业, 车用, Secondary µcontroller supply, Industrial, Sensing & Instrumentation, Sensor Supply, Heat distribution, 传感与仪器, Automotive, Sensing & Instrumentation, Industrial, Automotive
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TLE42502GHTSA1 Infineon 英飞凌 | 当前型号 | 当前型号 |
TLE4250GHTSA1 英飞凌 | 类似代替 | TLE42502GHTSA1和TLE4250GHTSA1的区别 |
