TEXAS INSTRUMENTS TPS70615DBVT 芯片, 稳压器, LDO, 固定, 1.5V, 0.15A, SOT-23-5
PMIC - 稳压器 - 线性 正 固定 输出 150mA SOT-23-5
立创商城:
TPS70615DBVT
德州仪器TI:
150-mA, ultra-low-IQ, low-dropout voltage regulator with reverse current protection & enable
得捷:
IC REG LINEAR 1.5V 150MA SOT23-5
e络盟:
TEXAS INSTRUMENTS TPS70615DBVT 稳压器, 固定LDO, 2.7V至6.5V输入, 1.5V/150mA输出, SOT-23-5
艾睿:
This LDO TPS70615DBVT linear regulator developed by Texas Instruments keeps the power stable! It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 0.15 A. This will operate at a minimum voltage of 2.7 V and a maximum voltage of 6.5 V, making it easy to control the power in your circuit. With a fixed output that has a voltage of 1.5 V, this is power management at its best. A load regulation of 20mVTyp and line regulation of 3mVTyp is necessary for providing a constant voltage level at your output. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. Its polarity is positive.
安富利:
LDO Regulator Pos 1.5V 0.15A 5-Pin SOT-23 T/R
Verical:
LDO Regulator Pos 1.5V 0.15A Medical 5-Pin SOT-23 T/R
Newark:
# TEXAS INSTRUMENTS TPS70615DBVT LDO Voltage Regulator - Fixed, 2.7V-6.5V input, 1.5Vnom/150mA out, SOT-23-5
输出接口数 1
输出电压 1.5 V
输出电流 150 mA
供电电流 2.55µA ~ 350µA
针脚数 5
静态电流 0.0013 mA
输出电容类型 Ceramic
跌落电压 245 mV
调节输出数 1
输入电压Max 6.5 V
输入电压Min 2.7 V
输出电压Min 1.5 V
输出电流Max 0.15 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 2.7V ~ 6.5V
安装方式 Surface Mount
引脚数 5

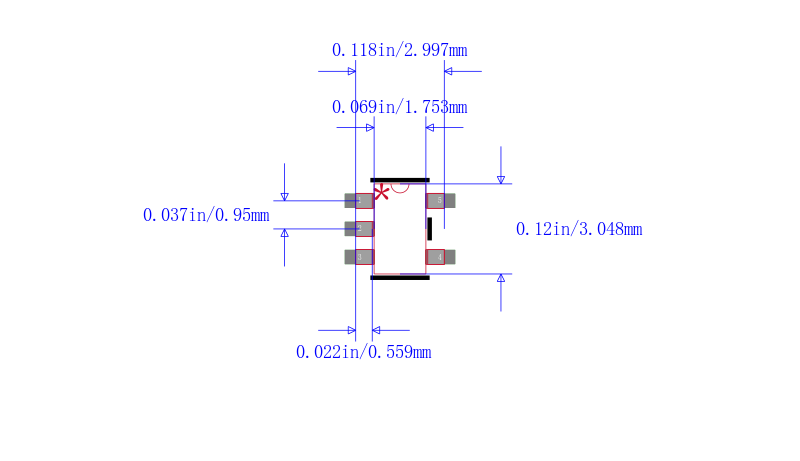

封装 SOT-23-5
封装 SOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS70615DBVT TI 德州仪器 | 当前型号 | 当前型号 |
TPS70615DBVR 德州仪器 | 类似代替 | TPS70615DBVT和TPS70615DBVR的区别 |
