精密可编程参考 PRECISION PROGRAMMABLE REFERENCE
The TL1431 device is a precision programmable reference with specified thermal stability over automotive, commercial, and military temperature ranges. The output voltage can be set to any value between VIref approximately 2.5 V and 36 V with two external resistors. This device has a typical output impedance of 0.2 Ω. Active output circuitry provides a sharp turnon characteristic, making the device an excellent replacement for Zener diodes and other types of references in applications such as onboard regulation, adjustable power supplies, and switching power supplies.
The TL1431C is characterized for operation over the commercial temperature range of 0°C to 70°C. The TL1431Q is characterized for operation over the full automotive temperature range of –40°C to 125°C. The TL1431M is characterized for operation over the full military temperature range of –55°C to 125°C.
容差 ±0.4 %
输出电压 2.5V ~ 36V
输出电流 100 mA
通道数 1
输出电压Max 36 V
输出电压Min 2.5 V
工作温度Max 125 ℃
工作温度Min 40 ℃
输入电压 37 V
安装方式 Surface Mount
引脚数 8

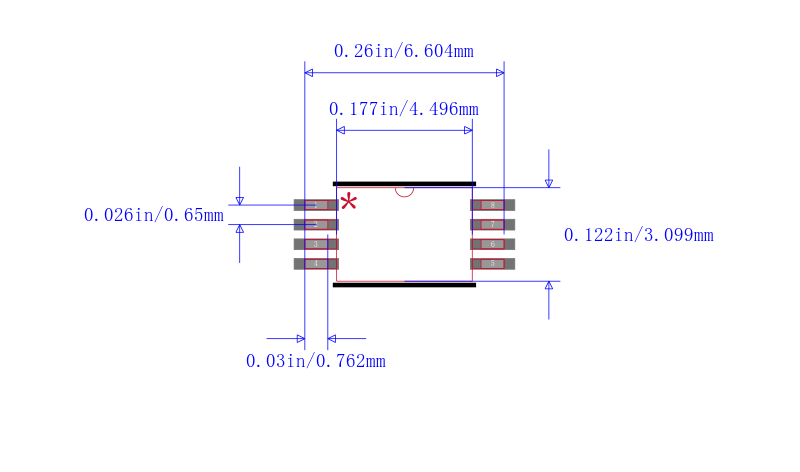

封装 TSSOP-8
长度 3 mm
宽度 4.4 mm
高度 1.15 mm
封装 TSSOP-8
工作温度 -40℃ ~ 125℃ TA
温度系数 ±114 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TL1431QPWRG4 TI 德州仪器 | 当前型号 | 当前型号 |
LT1009IPWR 德州仪器 | 类似代替 | TL1431QPWRG4和LT1009IPWR的区别 |
LT1009IPWRG4 德州仪器 | 类似代替 | TL1431QPWRG4和LT1009IPWRG4的区别 |
TL1431QPWR 德州仪器 | 类似代替 | TL1431QPWRG4和TL1431QPWR的区别 |
