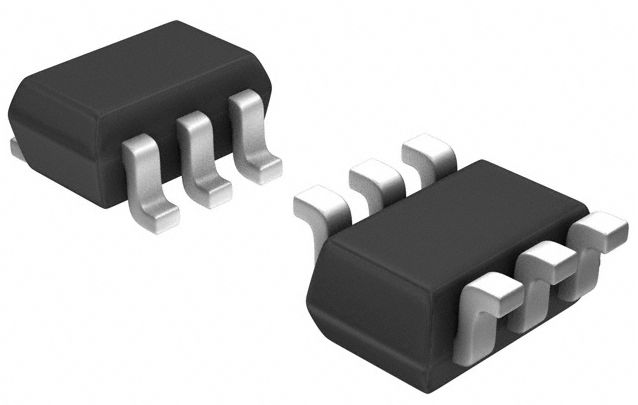

TEXAS INSTRUMENTS TPS61220DCKR 芯片, 同步升压稳压器, 可调, SC70-6
Adjust the voltage level of your devices with this step up DC to DC converter from Texas Instruments. This converter"s single output can produce a current up to 0.5 A. The best way to provide power to your application is by using this, which needs a voltage of at least 0.7 V and no higher than 5.5 V. With an adjustable output that has a voltage of 1.8 to 5.5 V, this is power management at its best. This converter is 95 % efficient. At a load regulation of 0.5% and line regulation of 0.5% your circuit is capable of maintaining a constant voltage level at your output. This part offers a switching frequency of 2000 kHz in order to work properly. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This converter has a minimum operating temperature of -40 °C and a maximum of 85 °C.
输出接口数 1
输出电压 1.8V ~ 5.5V
输出电流 200 mA
针脚数 6
静态电流 5.00 µA
调节输出数 1
开关频率 2 MHz
拓扑结构 Boost
输入电压Max 5.5 V
输入电压Min 0.7 V
输出电压Max 5.5 V
输出电压Min 1.8 V
输出电流Max 0.5 A
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 0.7V ~ 5.5V
输入电压 0.7V ~ 5.5V
安装方式 Surface Mount
引脚数 6
封装 SC-70-6
封装 SC-70-6
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 消费电子产品, 医用, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS61220DCKR TI 德州仪器 | 当前型号 | 当前型号 |
TPS61220DCKT 德州仪器 | 类似代替 | TPS61220DCKR和TPS61220DCKT的区别 |
TPS61222MDCKTEP 德州仪器 | 类似代替 | TPS61220DCKR和TPS61222MDCKTEP的区别 |
V62/12603-01XE 德州仪器 | 类似代替 | TPS61220DCKR和V62/12603-01XE的区别 |
