LDO(低压降)线性电压调节器,150mA,1.0V 至 1.9V,Texas Instruments### LDO(低压降)线性电压调节器,Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
LDO(低压降)线性稳压器,150mA,1.0V 至 1.9V,Texas Instruments
### LDO(低压降)线性稳压器,Texas Instruments
低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
得捷:
IC REG LINEAR 1.8V 150MA 6WSON
立创商城:
TPS70618DRVT
德州仪器TI:
150-mA, ultra-low-IQ, low-dropout voltage regulator with reverse current protection & enable
欧时:
### LDO(低压降)线性电压调节器,150mA,1.0V 至 1.9V,Texas Instruments### LDO(低压降)线性电压调节器,Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
贸泽:
低压差稳压器 150mA, 6.5V, 1uA Voltage Regulator
e络盟:
TEXAS INSTRUMENTS TPS70618DRVT 稳压器, 固定LDO, 2.7V至6.5V输入, 1.8V/150mA输出, SON-6
艾睿:
This LDO TPS70618DRVT linear regulator from Texas Instruments is used to manipulate the voltage level of your circuit. It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 0.15 A. By only needing an input voltage of 2.7 V with a maximum of 6.5 V, this is the best way to control the power in your circuit. With a fixed output that has a voltage of 1.8 V, this is power management at its best. Your circuit has the capability to produce a constant current at its output by using a load regulation of 20mVTyp and line regulation of 3mVTyp. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive.
安富利:
LDO Regulator Pos 1.8V 0.15A 6-Pin WSON T/R
Verical:
LDO Regulator Pos 1.8V 0.15A Medical 6-Pin WSON EP T/R
Newark:
# TEXAS INSTRUMENTS TPS70618DRVT LDO Voltage Regulator - Fixed, 2.7V-6.5V input, 1.8Vnom/150mA out, SON-6
输出接口数 1
输出电压 1.8 V
输出电流 150 mA
针脚数 6
静态电流 1 µA
输出电容类型 Ceramic
跌落电压 245 mV
调节输出数 1
输入电压Max 6.5 V
输入电压Min 2.7 V
输出电流Max 150 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 2.7V ~ 6.5V
安装方式 Surface Mount
引脚数 6

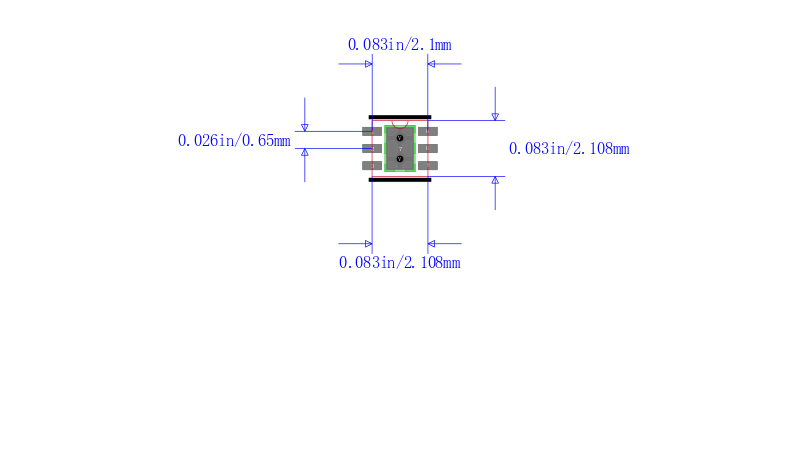

封装 WDFN-6
长度 2.1 mm
宽度 2.1 mm
高度 0.75 mm
封装 WDFN-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS70618DRVT TI 德州仪器 | 当前型号 | 当前型号 |
TPS70618DRVR 德州仪器 | 类似代替 | TPS70618DRVT和TPS70618DRVR的区别 |
