TEXAS INSTRUMENTS TPS70633DBVT 固定电压稳压器, LDO, 2.7V至6.5V, 975mV压差, 3.3V输出, 150mA输出, SOT-23-5
The is a 3.3V fixed output Linear Regulator designed for power-sensitive applications. A precision bandgap and error amplifier provides 2% accuracy over temperature. Quiescent current of only 1µA makes these devices ideal solutions for battery-powered, always-ON systems that require very little idle-state power dissipation. These devices have thermal-shutdown, current-limit and reverse-current protection for added safety. This regulator can be put into shutdown mode by pulling the EN pin low. The shutdown current in this mode goes down to 150nA, typical.
- .
- Reverse current protection
- .
- Supports 200mA peak output
- .
- Green product and no Sb/Br
输出接口数 1
输出电压 3.3 V
输出电流 150 mA
针脚数 5
静态电流 0.0013 mA
输出电容类型 Ceramic
跌落电压 975 mV
调节输出数 1
输入电压Max 6.5 V
输入电压Min 2.7 V
输出电流Max 0.15 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1 %
输入电压 ≤6.5 V
安装方式 Surface Mount
引脚数 5

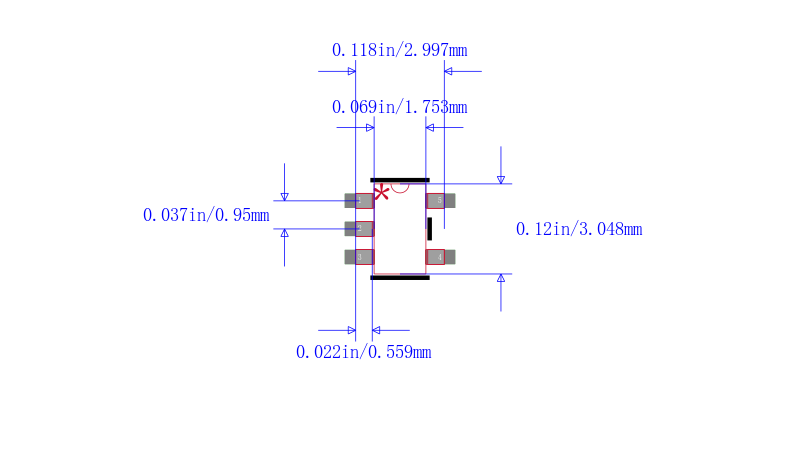

封装 SOT-23-5
封装 SOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 医用, 电源管理, 消费电子产品, 便携式器材
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TPS70633DBVT TI 德州仪器 | 当前型号 | 当前型号 |
TPS70633DBVR 德州仪器 | 类似代替 | TPS70633DBVT和TPS70633DBVR的区别 |
