低压差稳压器 LINEAR VOLTAGE REGULATOR
PMIC - 稳压器 - 线性 正 可调式 1 输出 50mA PG-SCT595-5
得捷:
IC REG LIN POS ADJ 50MA SCT595-5
立创商城:
正 Vin=40V 50mA 60dB@100Hz
艾睿:
Don&s;t let unpredictable voltage levels ruin your circuit! Use this LDO TLE4250GHTSA1 linear regulator from Infineon Technologies to control your voltage levels! Its typical dropout voltage at current is 0.1@10mA V. It has an overall accuracy of ±0.5 %. This voltage regulation device&s;s single output can produce a current up to 0.07 A. Use this part at voltages between 4 V and 40 V. With a fixed output that has a voltage of 5 V, this is power management at its best. Operate at a constant current by utilizing the load regulation of 15mV and line regulation of 10mV. The maximum dropout voltage is 0.3@10mA V. This voltage regulation device has an operating temperature range of -40 °C to 150 °C. Its polarity is positive.
安富利:
Low-Drop Voltage Tracker 5-Pin SCT-595 T/R
Chip1Stop:
LDO Regulator Pos 5V 0.07A 5-Pin3+2Tab SCT-595
Verical:
LDO Regulator Pos 5V 0.07A Automotive 5-Pin3+2Tab SCT-595
Win Source:
Linear Voltage Regulator IC Positive Adjustable 1 Output Tracking 50mA PG-SCT595-5
输出接口数 1
输出电压 5 V
输出电流 50 mA
供电电流 20µA ~ 3mA
跌落电压 0.1V @10mA
输入电压Max 40 V
输入电压Min 4 V
输出电流Max 0.07 A
工作温度Max 150 ℃
工作温度Min -40 ℃
精度 ±0.5 %
输入电压 4V ~ 40V
安装方式 Surface Mount
引脚数 5

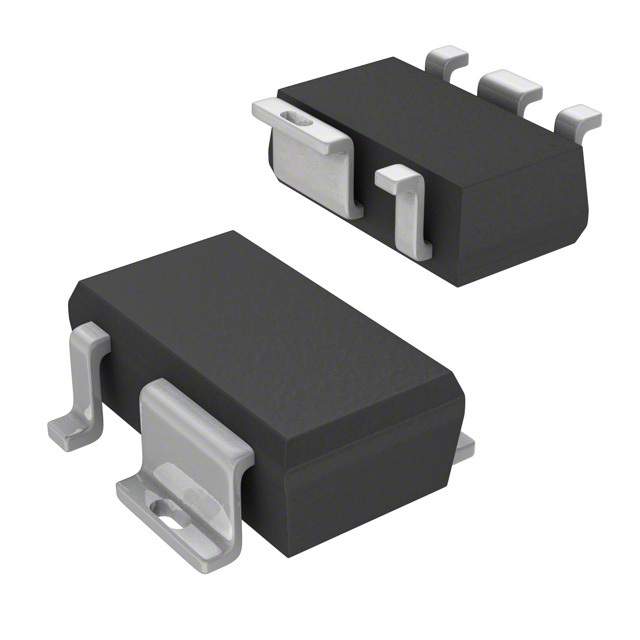

封装 SCT-595-5
封装 SCT-595-5
工作温度 -40℃ ~ 150℃
产品生命周期 Not For New Designs
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TLE4250GHTSA1 Infineon 英飞凌 | 当前型号 | 当前型号 |
TLE42502GHTSA1 英飞凌 | 类似代替 | TLE4250GHTSA1和TLE42502GHTSA1的区别 |
